PW1L Series

Manufacturer: IDEC

Catalog

VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, PW1L SERIES, MOMENTARY, YELLOW, WIRE LEADED

Part	Electrical Life	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Type	Switch Function	Actuator Type	Termination Style	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Circuit	Ingress Protection	Actuator Marking	Current Rating (Amps)	Illumination Type, Color	Mounting Type
IDEC PW1L-RYAFB002E0Y	50 000 000	24 V	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	LED Yellow	Panel Mount Front
IDEC PW1L-RYAFB002D0S	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	LED Red	Panel Mount Front

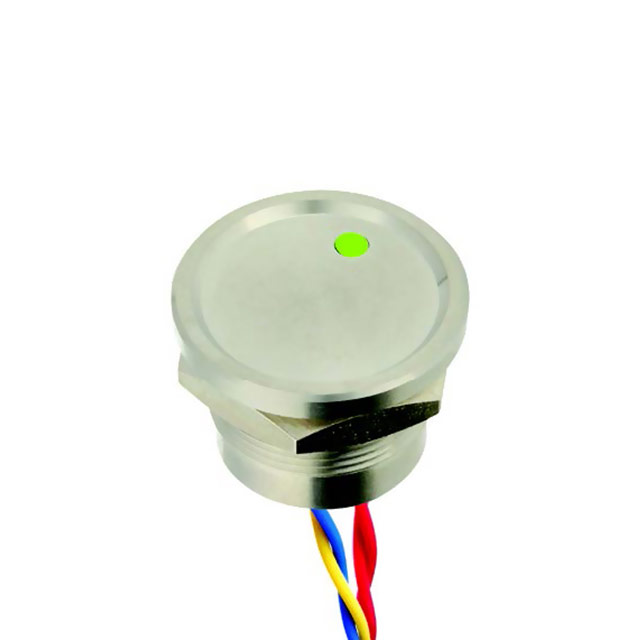

IDEC PW1L-R6AFB002PSG	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	Green/Red LED	Panel Mount Front
IDEC PW1L-RYAFB002E0S	50 000 000	24 V	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	LED Red	Panel Mount Front

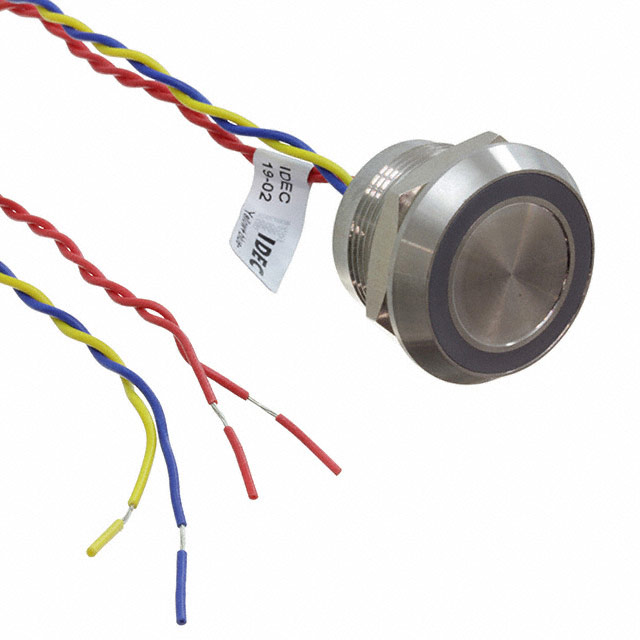

IDEC PW1L-RYAFB002D0B	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	Blue LED	Panel Mount Front
IDEC PW1L-R6AFB002J0S	50 000 000	24 V	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	LED Red	Panel Mount Front
IDEC PW1L-RYAFB002D0W	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	LED White	Panel Mount Front
IDEC PW1L-R6AFB002J0G	50 000 000	24 V	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	Green LED	Panel Mount Front
IDEC PW1L-R6AFB002P0G	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	Green LED	Panel Mount Front
IDEC PW1L-RYAFB002D2A	50 000 000	12 VDC	22.2 mm	24 V	Piezo	Off-Mom	Button Flush Round	Wire Leads	24 V	-40 C	75 ░C	Silver	SPST-NO	IP68 IP69K	No Marking	1 A	Green/Red LED	Panel Mount Front
