842-051 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 51POS 0.100

Part	Mounting Type	Number of Positions/Bay/Row [custom]	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions	Material - Insulation	Contact Type	Gender	Read Out	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Card Type	Contact Finish
EDAC Inc. 842-051-523-103	Through Hole	51	1	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-540-101	Through Hole	51	1				Wire Wrap	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-540-103	Through Hole	51	1	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Wire Wrap	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-559-107	Right Angle Through Hole	51	1		Flush Mount M3 Threaded Insert Top Opening		Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold

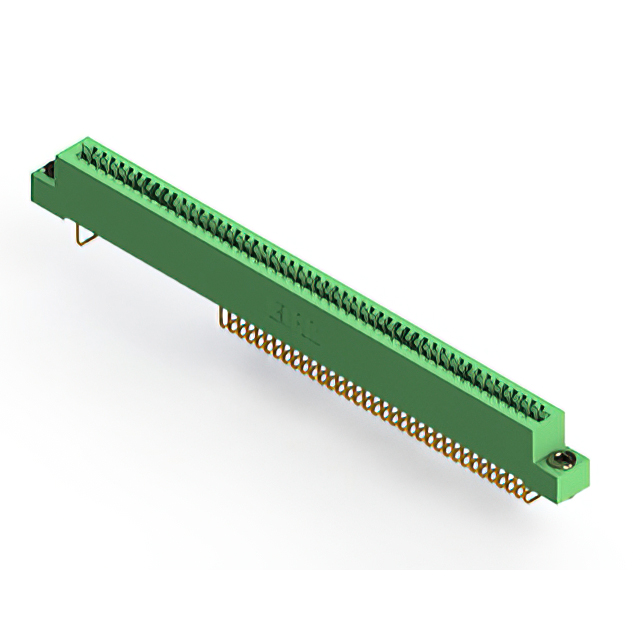

EDAC Inc. 842-051-558-103	Right Angle Through Hole	51	1	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-524-104	Through Hole	51	1	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-542-103	Through Hole	51	1	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Wire Wrap	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-524-108	Through Hole	51	1		4-40 Flush Mount Threaded Insert Top Opening		Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold

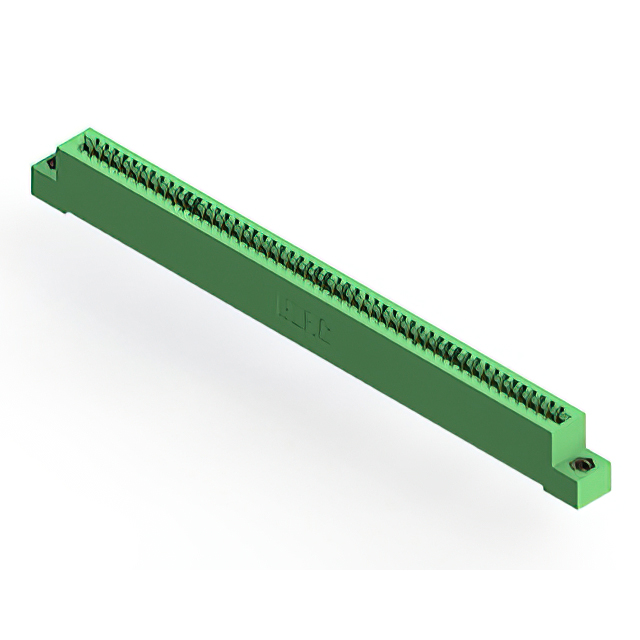

EDAC Inc. 842-051-524-107	Through Hole	51	1		Flush Mount M3 Threaded Insert Top Opening		Solder	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
EDAC Inc. 842-051-541-107	Through Hole	51	1		Flush Mount M3 Threaded Insert Top Opening		Wire Wrap	1	Green	0.25 Ám	10 Áin	Copper Alloy	51	Diallyl Phthalate (DAP)	Cantilever	Female	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold
