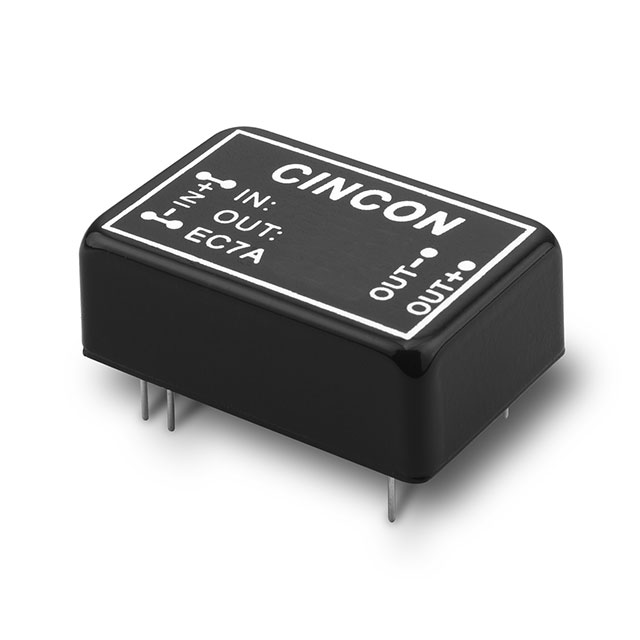

EC7A-24 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 15V 10W

Part	Number of Outputs	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Features	Standard Number	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Package / Case	Type	Applications	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC7A-24S15	1	15 V	CE cURus	666 mA	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	88 %	1.5 kV	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)
Cincon Electronics Co. LTD EC7A-24D15S	2	15 V	CE cURus		-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Surface Mount	0.8 "	0.45 in	31.8 mm			1.25 in	18 V	87 %	1.5 kV	24-SMD Module 18 Leads	Isolated Module	ITE (Commercial)	-15 V	20.3 mm	11.4 mm	333 mA
Cincon Electronics Co. LTD EC7A-24S25S	1	2.5 V	CE cURus	3 A	-40 °C	85 °C	36 V	7.5 W	OCP OVP SCP UVLO	60950-1	Surface Mount	0.8 "	0.45 in	31.8 mm			1.25 in	18 V	85 %	1.5 kV	24-SMD Module 18 Leads	Isolated Module	ITE (Commercial)		20.3 mm	11.4 mm
Cincon Electronics Co. LTD EC7A-24S05S	1	5 V	CE cURus	2 A	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Surface Mount	0.8 "	0.45 in	31.8 mm			1.25 in	18 V	88 %	1.5 kV	24-SMD Module 18 Leads	Isolated Module	ITE (Commercial)		20.3 mm	11.4 mm
Cincon Electronics Co. LTD EC7A-24S05	1	5 V	CE cURus	2 A	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	88 %	1.5 kV	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)
Cincon Electronics Co. LTD EC7A-24S33	1	3.3 V	CE cURus	3 A	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	86 %	1.5 kV	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)
Cincon Electronics Co. LTD EC7A-24D12	2	12 V	CE cURus	416 mA	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	89 %	1.5 kV	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)	-12 V				416 mA
Cincon Electronics Co. LTD EC7A-24S12S	1	12 V	CE cURus	835 mA	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Surface Mount	0.8 "	0.45 in	31.8 mm			1.25 in	18 V	89 %	1.5 kV	24-SMD Module 18 Leads	Isolated Module	ITE (Commercial)		20.3 mm	11.4 mm
Cincon Electronics Co. LTD EC7A-24S15S	1	15 V	CE cURus	666 mA	-40 °C	85 °C	36 V	10 W	OCP OVP SCP UVLO	60950-1	Surface Mount	0.8 "	0.45 in	31.8 mm			1.25 in	18 V	88 %	1.5 kV	24-SMD Module 18 Leads	Isolated Module	ITE (Commercial)		20.3 mm	11.4 mm
Cincon Electronics Co. LTD EC7A-24S25	1	2.5 V	CE cURus	3 A	-40 °C	85 °C	36 V	7.5 W	OCP OVP SCP UVLO	60950-1	Through Hole	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	18 V	85 %	1.5 kV	24-DIP Module 8 Leads	Isolated Module	ITE (Commercial)
