LCD-S101 Series

Catalog

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Part	Display Format [x]	Display Format [y]	Display Type	Display Mode	Number of Characters	Operating Temperature [Max]	Character Size [z]	Character Size [y]	Character Format	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Background Color	Voltage - Supply [Min]	Voltage - Supply [Max]

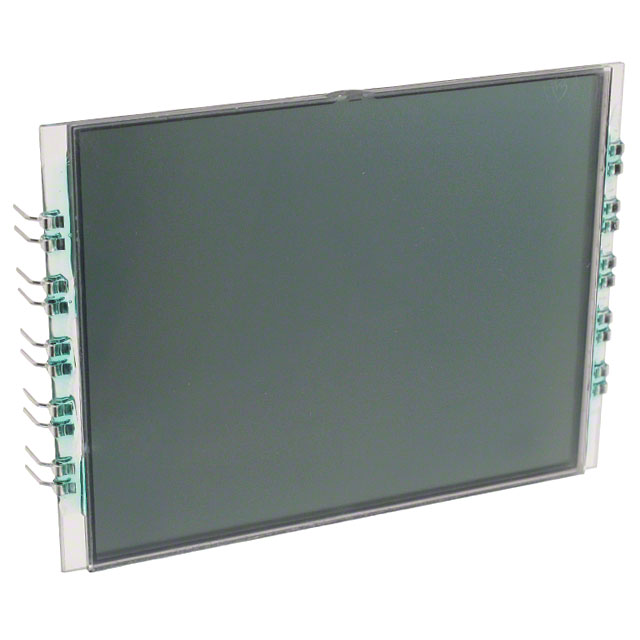

Lumex Opto/Components Inc. LCD-S101D22TR	1	1	TN - Twisted Nematic	Reflective	1	50 °C	56.13 mm	36.7 mm	7-Segment	65.02 mm	50.8 mm	76.2 mm	2.8 mm	55.88 mm
Lumex Opto/Components Inc. LCD-S101M71TR-02	1	1	TN - Twisted Nematic	Reflective	1	50 °C				19.86 mm	20.3 mm	25.4 mm	2.8 mm	22.86 mm	Gray

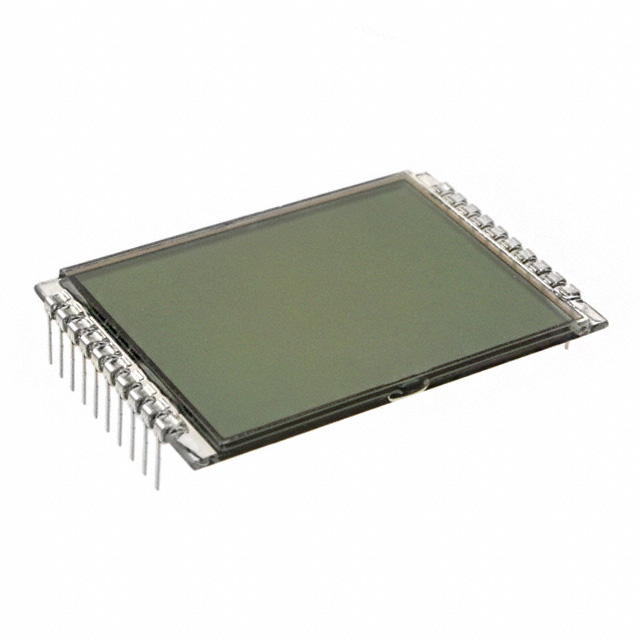

Lumex Opto/Components Inc. LCD-S101D14TR	1	1	TN - Twisted Nematic	Reflective	1	50 °C	34.54 mm	19 mm	7-Segment	38.9 mm	27.9 mm	33 mm	2.8 mm	50 mm
Lumex Opto/Components Inc. LCD-S101D14TF	1	1	TN - Twisted Nematic	Transflective	1	50 °C	34.54 mm	19 mm	7-Segment	27.9 mm	38.9 mm	50 mm	2.8 mm	33 mm	Gray

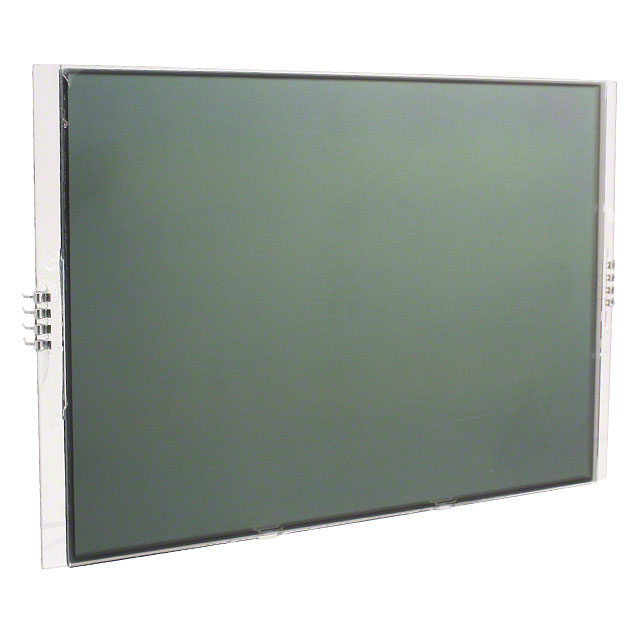

Lumex Opto/Components Inc. LCD-S101D40TR	1	1	TN - Twisted Nematic	Reflective	1	50 °C	101.6 mm	71.12 mm	7-Segment	109.22 mm	76.2 mm	81.28 mm	2.8 mm	122.56 mm

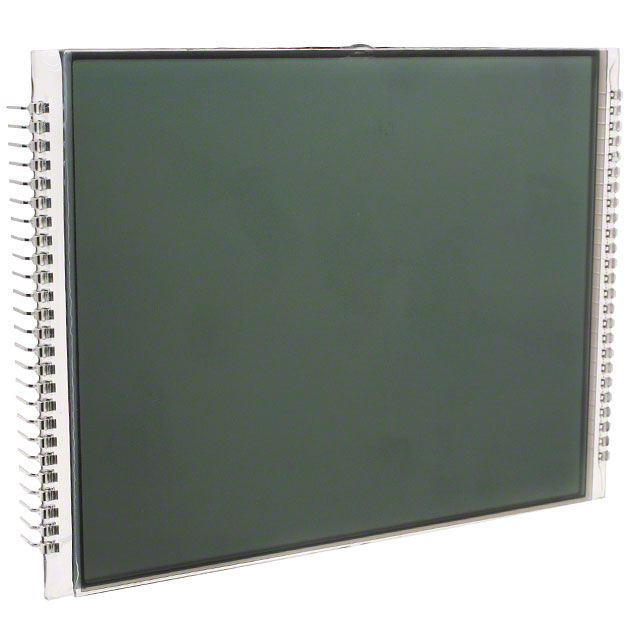

Lumex Opto/Components Inc. LCD-S101D30TR	1	1	TN - Twisted Nematic	Reflective	1	50 °C	76 mm	43.18 mm	7-Segment	89 mm	71.2 mm	76.2 mm	2.8 mm	102.4 mm		3 V	5 V
