40PC150 Series

Catalog

SENSOR 150PSIG 0.18" 4.5V

Part	Pressure Type	Termination Style	Package / Case	Output [Max]	Output [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Accuracy	Applications	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size
Honeywell Sensing and Productivity Solutions 40PC150G3A	Vented Gauge	PC Pin	6-DIP Module	4.5 V	0.5 V	Through Hole	-45 °C	125 °C	Analog Voltage	2.5 %	Board Mount	Amplified Output	300 PSI	2068.43 kPa	Barbless	1034.21 kPa	150 PSI	4.75 V	5.25 V	4.57 mm	Male Tube	0.18 in

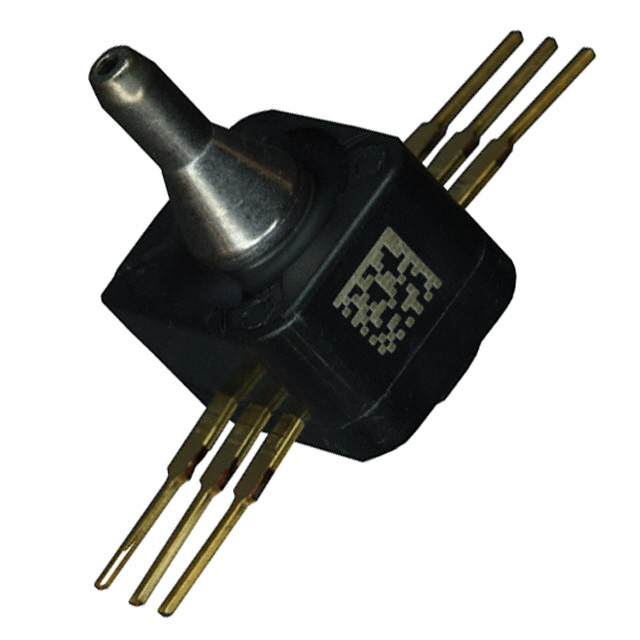

Honeywell Sensing and Productivity Solutions 40PC150G1A	Vented Gauge	PC Pin	6-DIP Module	4.5 V	0.5 V	Through Hole	-45 °C	125 °C	Analog Voltage	2.5 %	Board Mount	Amplified Output	300 PSI	2068.43 kPa	Barbless	1034.21 kPa	150 PSI	4.75 V	5.25 V	4.57 mm	Male Tube	0.18 in

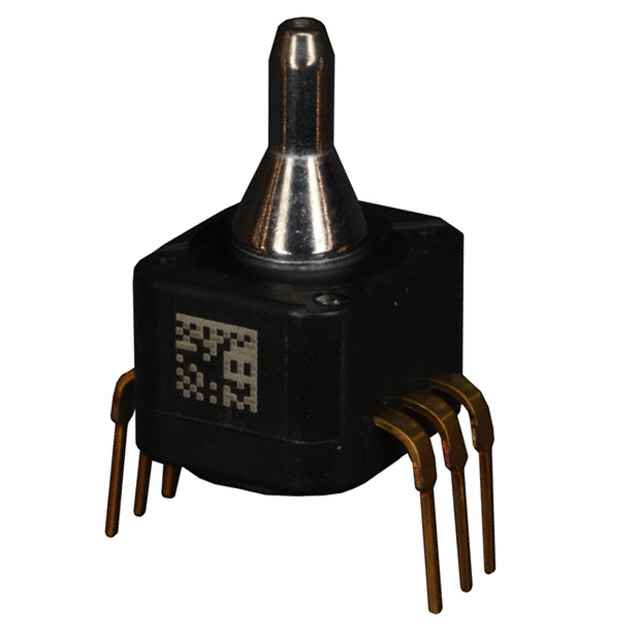

Honeywell Sensing and Productivity Solutions 40PC150G2A	Vented Gauge	PC Pin	6-DIP Module	4.5 V	0.5 V	Through Hole	-45 °C	125 °C	Analog Voltage	2.5 %	Board Mount	Amplified Output	300 PSI	2068.43 kPa	Barbless	1034.21 kPa	150 PSI	4.75 V	5.25 V	4.57 mm	Male Tube	0.18 in
