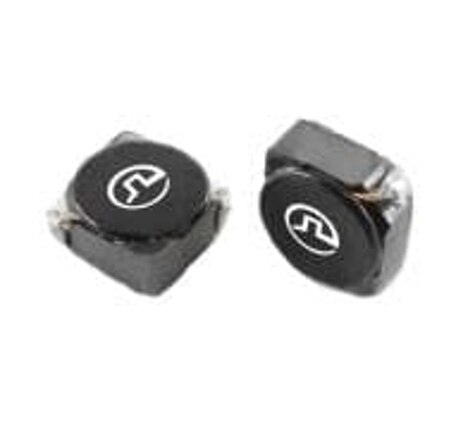

PA4318 Series
Power Inductors - SMD PA4318 6.1x6.1mm 10uH 1.64A 70mOhms
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD PA4318 6.1x6.1mm 10uH 1.64A 70mOhms
Beta
⌘K
Power Inductors - SMD PA4318 6.1x6.1mm 10uH 1.64A 70mOhms
Power Inductors - SMD PA4318 6.1x6.1mm 10uH 1.64A 70mOhms
Power Inductors - SMD PA4318 6.1x6.1mm 10uH 1.64A 70mOhms
| Part | Current - Saturation (Isat) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Tolerance | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | DC Resistance (DCR) | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Shielding | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 1.36 A | 0.126 in | 3.2 mm | 100 kHz | 20 % | Surface Mount | 125 °C | -40 C | 1.64 A | 70 mOhm | Wirewound | 0.24 " | 6.1 mm | 6.1 mm | 0.24 " | Nonstandard Corner Terminals | Shielded | 10 µH |
