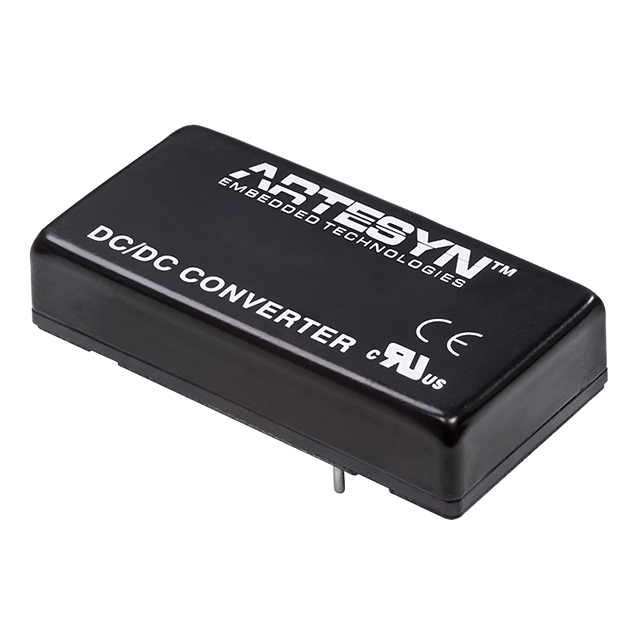

ERM04A Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 5V 20W
| Part | Package / Case | Type | Number of Outputs | Current - Output (Max) [Max] | Features | Voltage - Isolation | Power (Watts) | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Voltage - Output 1 | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 6-DIP Module | Isolated Module | 1 | 4 A | OCP OTP OVP Remote On/Off | 3000 V | 20 W | 18 V | -40 °C | 85 °C | 87 % | 75 V | 1 " | 0.43 in | 50.8 mm | 25.4 mm | 2 in | 11 mm | Railway | 5 V | 6-DIP | Through Hole |
 ARTESYN / Advanced Energy | 6-DIP Module | Isolated Module | 1 | 4 A | OCP OTP OVP Remote On/Off | 3000 V | 20 W | 40 V | -40 °C | 85 °C | 84 % | 160 V | 1 " | 0.43 in | 50.8 mm | 25.4 mm | 2 in | 11 mm | Railway | 5 V | 6-DIP | Through Hole |
ARTESYN / Advanced Energy | 6-DIP Module | Isolated Module | 1 | 4 A | OCP OTP OVP Remote On/Off | 3000 V | 20 W | 9 V | -40 °C | 85 °C | 87 % | 36 V | 1 " | 0.43 in | 50.8 mm | 25.4 mm | 2 in | 11 mm | Railway | 5 V | 6-DIP | Through Hole |
