892-037 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 37POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Read Out	Contact Finish	Card Type	Mounting Type	Gender	Termination	Flange Feature	Number of Positions	Color	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]

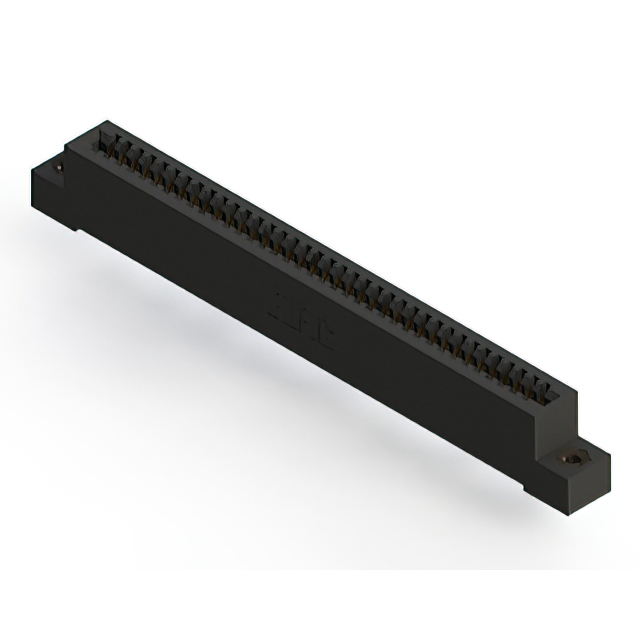

EDAC Inc. 892-037-524-108	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Solder	4-40 Flush Mount Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 892-037-541-107	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm

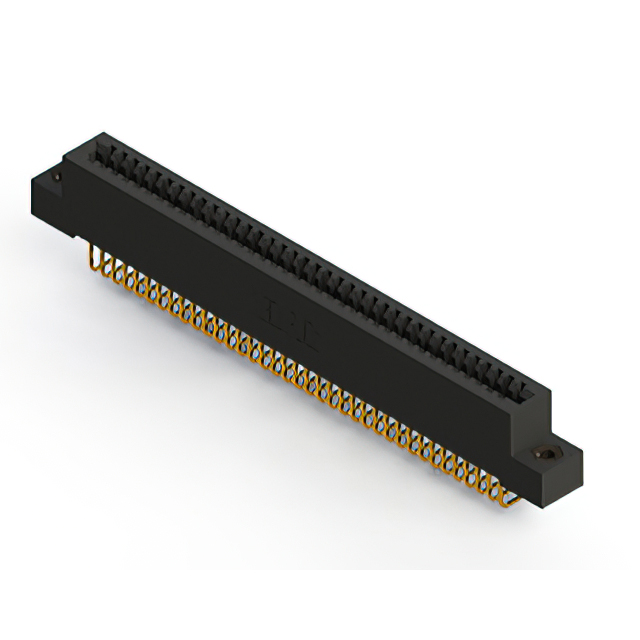

EDAC Inc. 892-037-558-107	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Right Angle Through Hole	Female	Solder	Flush Mount M3 Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 892-037-523-108	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Solder	4-40 Flush Mount Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 892-037-540-102	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	Flush Mount Top Opening Unthreaded	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	3.25 mm	0.128 "
EDAC Inc. 892-037-541-108	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 892-037-540-108	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm

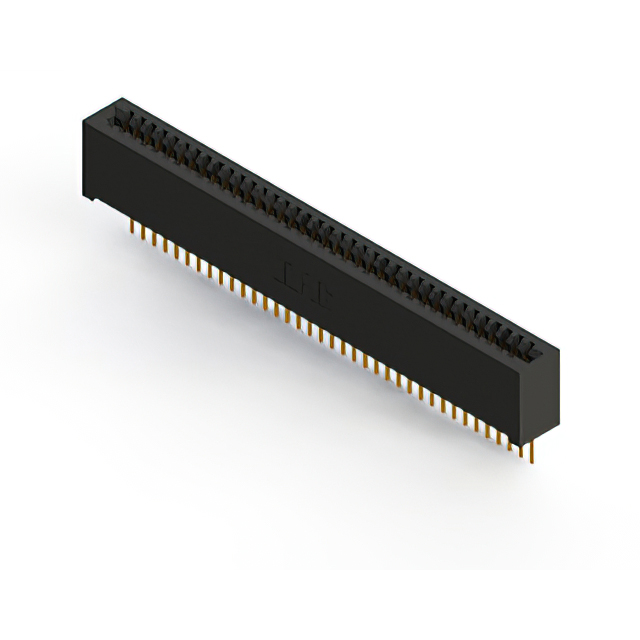

EDAC Inc. 892-037-541-101	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap		37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
EDAC Inc. 892-037-542-102	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	Flush Mount Top Opening Unthreaded	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm	3.25 mm	0.128 "
EDAC Inc. 892-037-542-108	1	Polyphenylene Sulfide (PPS)	37	Single	Gold	Non Specified - Single Edge	Through Hole	Female	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	37	Black	1	125 °C	-40 C	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	0.1 "	2.54 mm
