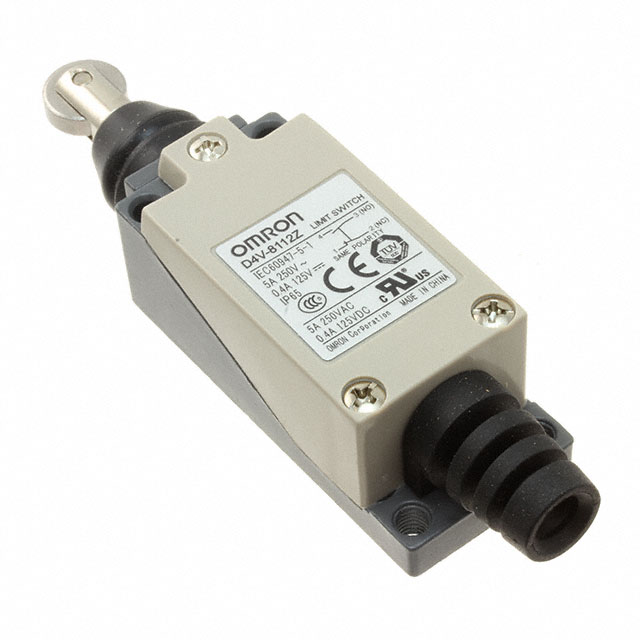

D4V-8112 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH LIMIT SPDT 5A 125V
| Part | Release Force | Circuit | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Operating Force | Termination Style | Ingress Protection | Actuator Type | Voltage Rating - AC | Mechanical Life | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Operating Position | Operating Position | Voltage Rating - DC | Pretravel | Pretravel | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 300 gf | SPDT | 5 A | 0.158 in | 4 mm | 1.2 mm | 0.047 in | 1 kgf | Screw Terminal | IP65 - Dust Tight Water Resistant | Roller Plunger | 125 V | 10000000 Cycles | 300000 Cycles | -20 ░C | 60 °C | On-Mom | 1.457 in | 37 mm | 24 V | 0.06 in | 1.5 mm | Chassis Mount |
