CNX714 Series

Catalog

IND TUFFLED FLEXVOLT 14MM WH/CLR

Part	Millicandela Rating [Min]	Millicandela Rating [Max]	Type	Voltage [Max]	Voltage [Min]	Lens Size [diameter]	Lens Style	Ingress Protection	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Voltage	Millicandela Rating	Lens Color	Ratings	Panel Cutout Dimensions [x]	Current	Lens Transparency

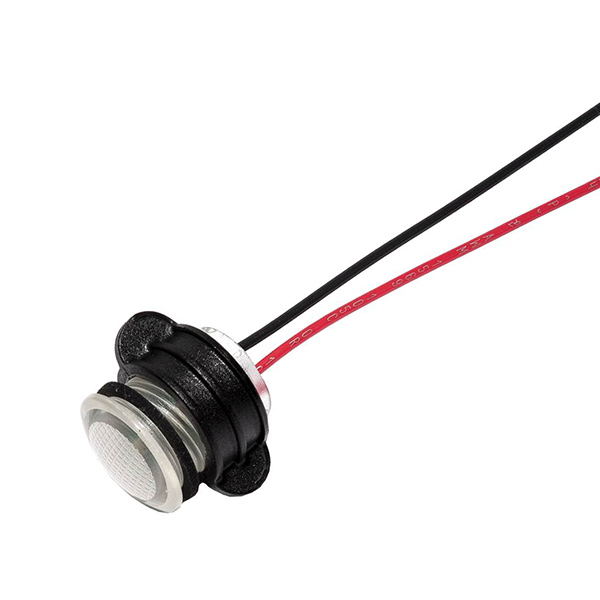

Visual Communications Company - VCC CNX714C900FVW	1300 mcd	1700 mcd	LED	28 V	5 V	17 mm	Round with Domed Top	IP67 NEMA 6P	Round	0.55 in	13.97 mm	White

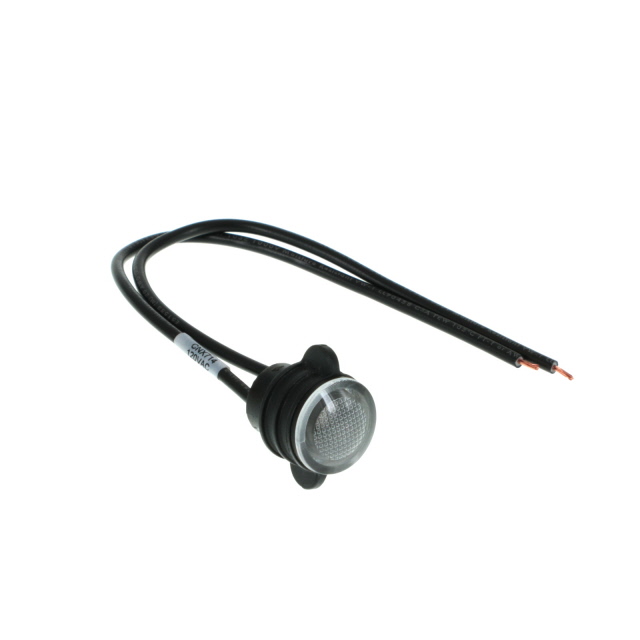

Visual Communications Company - VCC CNX714C900120W			LED			17 mm	Round with Domed Top	IP67	Round		14 mm	White	120 V	644 mcd	White	AC	0.55 in	8 mA

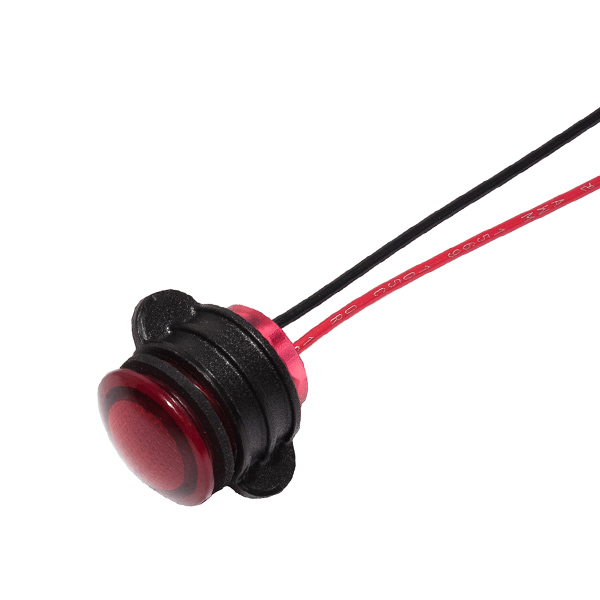

Visual Communications Company - VCC CNX714C200FVW	1300 mcd	1900 mcd	LED	28 V	5 V	17 mm	Round with Domed Top	IP67 NEMA 6P	Round	0.55 in	13.97 mm	Red

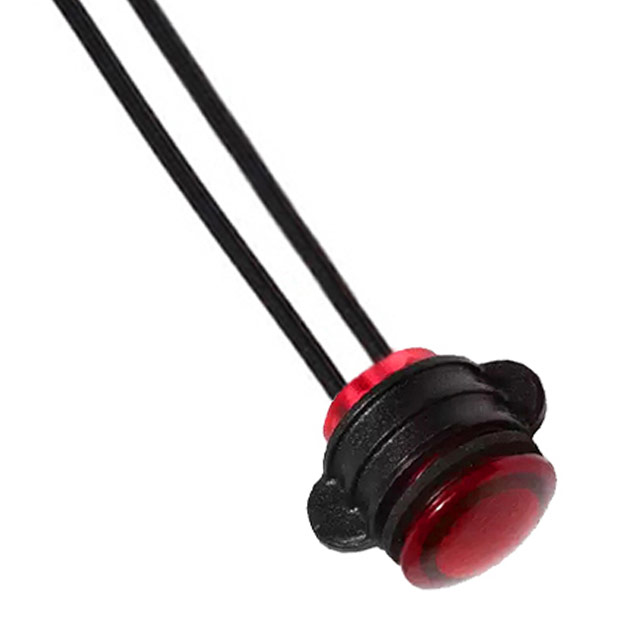

Visual Communications Company - VCC CNX714C200120W			LED			17 mm	Round with Domed Top	IP67	Round		14 mm	Red	120 V	550 mcd	Red	AC	0.55 in	8 mA

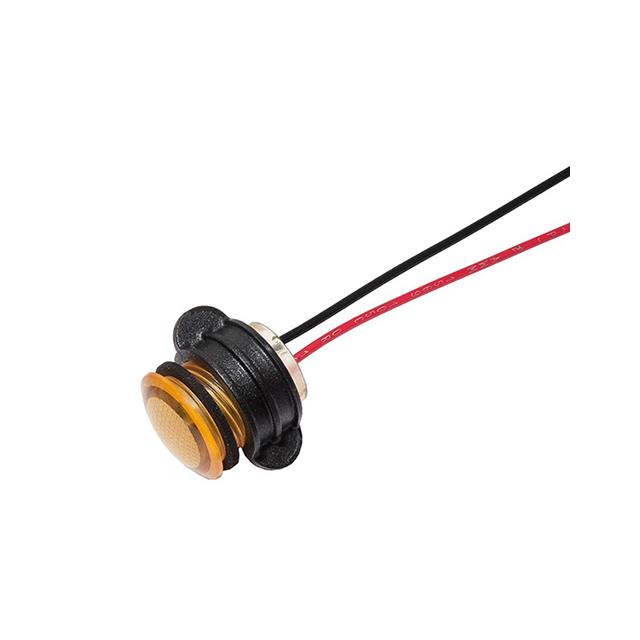

Visual Communications Company - VCC CNX714C401FVW			LED	28 V	5 V		Round with Domed Top	IP67 NEMA 6P	Round		14.22 mm	Yellow		785 mcd	Yellow	DC	0.56 in	30 mA	Clear
