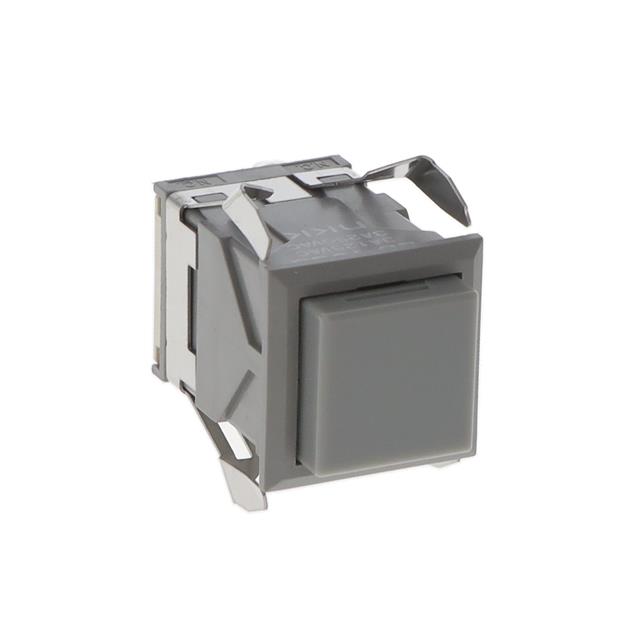

LB15SGW Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE SNAP-IN PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - DC | Actuator Marking | Termination Style | Color - Actuator/Cap | Switch Function | Type | Voltage Rating - AC | Mounting Type | Actuator Type | Current Rating (Amps) | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | Green | On-Mom | Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 70 °C | ||
NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | Clear | On-Mom | Illuminated Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 50 °C | 24 V | Amber LED |
NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | Yellow | On-Mom | Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 70 °C | ||
 NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | On-Mom | Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 70 °C | |||
NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | Clear | On-Mom | Illuminated Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 50 °C | 24 V | Green LED |
NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | Blue | On-Mom | Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 70 °C | ||
 NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | White | On-Mom | Standard | 125 V | Panel Mount Snap-In | Button Square | 3 A | SPDT | -25 °C | 70 °C | ||
 NKK Switches | 1000000 Cycles | 100000 Cycles | 16.2 mm | 16.2 mm | 30 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | On-Mom | Standard | 125 V | Panel Mount Snap-In | Plunger for Cap | 3 A | SPDT | -25 °C | 70 °C |
