L177HDE15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

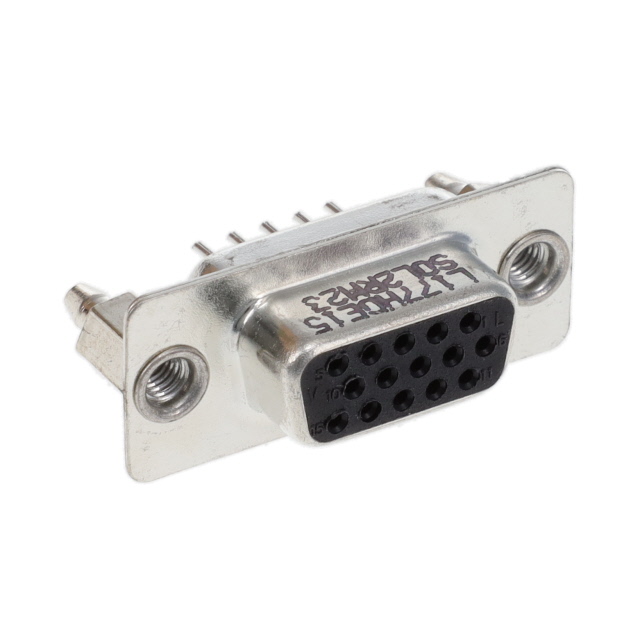

CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Contact Material | Voltage Rating | Contact Form | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Connector Style | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Termination | Features | Number of Rows [custom] | Backset Spacing | Backset Spacing | Mounting Type | Contact Type | Material Flammability Rating | Contact Finish | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | 4-40 Mating Side Female Screwlock | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | Board Lock | 3 | 8.89 mm | 0.35 in | Right Angle Through Hole | Signal | UL94 V-0 | Gold | 15 | |
 Amphenol ICC (Commercial Products) | Brass | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 105 ░C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Mating Side Female Screwlock (M3) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | Board Lock Grounding Tabs | 3 | 8.89 mm | 0.35 in | Right Angle Through Hole | Signal | UL94 V-0 | Gold | 15 | Black |
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | 4-40 Mating Side Female Screwlock | 16 µin | 0.41 µm | Receptacle Female Sockets | 3 | Free Hanging (In-Line) | Signal | UL94 V-0 | Gold | 15 | |||||
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Housing/Shell (Unthreaded) | 16 in 16 µin | 0.41 m 0.41 µm | Receptacle Female Sockets | 3 | Free Hanging (In-Line) | Signal | UL94 V-0 | Gold | 15 | |||||
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Board Side (M3) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | Board Lock | 3 | 8.89 mm | 0.35 in | Right Angle Through Hole | Signal | UL94 V-0 | Gold | 15 | |
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Board Side (4-40) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | Board Lock | 3 | 1.5 mm | 0.059 in | Right Angle Through Hole | Signal | UL94 V-0 | Gold | 15 | |
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Mating Side Female Screwlock (M3) | 16 µin | 0.41 µm | Receptacle Female Sockets | 3 | Free Hanging (In-Line) | Signal | UL94 V-0 | Gold | 15 | |||||
 Amphenol ICC (Commercial Products) | Phosphor Bronze | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Housing/Shell (Unthreaded) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | 3 | Through Hole | Signal | UL94 V-0 | Gold | 15 | ||||
 Amphenol ICC (Commercial Products) | Brass | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 105 ░C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Housing/Shell (Unthreaded) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | 3 | Through Hole | Signal | UL94 V-0 | Gold | 15 | Black | |||
 Amphenol ICC (Commercial Products) | Brass | 250 V | Stamped | Thermoplastic Glass Filled | -55 C | 105 ░C | (DE E) High Density | 1 | 3 A | D-Sub High Density | Board Side (4-40) | 16 µin | 0.41 µm | Receptacle Female Sockets | Solder | Board Lock Grounding Tabs | 3 | 8.89 mm | 0.35 in | Right Angle Through Hole | Signal | UL94 V-0 | Gold | 15 | Black |
