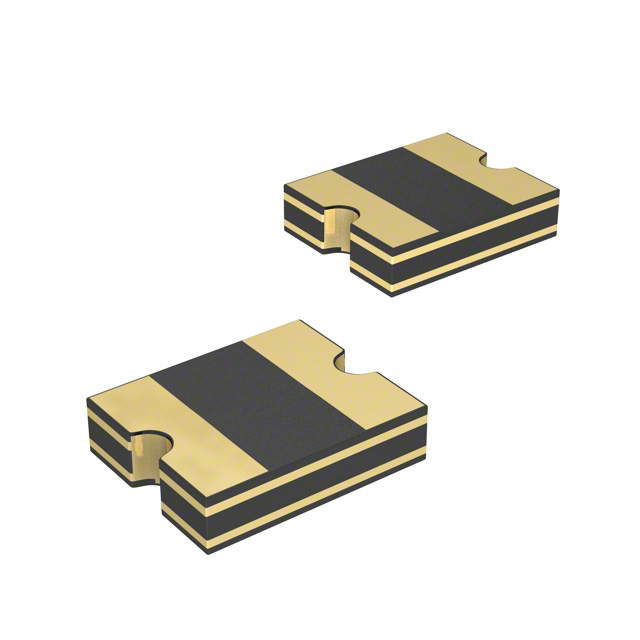

MF-USMF Series

Catalog

PTC RESET FUSE 6V 350MA 1210

Part	Approval Agency	Time to Trip	Type	Package / Case	Qualification	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Voltage - Max [Max]	Grade	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Trip (It)	Current - Max [Max]	Mounting Type	Quantity	Voltage Rating [Min]	Voltage Rating [Max]	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Packages Included	Packages Included	Kit Type
Bourns Inc. MF-USMF035-2	cURus TUV	0.2 s	Polymeric	1210 (3225 Metric) Concave	AEC-Q200	1.3 Ohms	200 mOhms	6 V	Automotive	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	350 mA	0.85 mm	0.033 in	750 mA	40 A	Surface Mount
Bourns Inc. MF-USMF075-2	cURus TUV	100 ms	Polymeric	1210 (3225 Metric) Concave	AEC-Q200	450 mOhms	70 mOhms	6 V	Automotive	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	750 mA	0.85 mm	0.033 in	1.5 A	40 A	Surface Mount
Bourns Inc. MF-USMF005-2	cURus TUV	1.5 s	Polymeric	1210 (3225 Metric) Concave	AEC-Q200	50 Ohms		30 V	Automotive	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	50 mA	0.85 mm	0.033 in	150 mA	10 A	Surface Mount
Bourns Inc. MF-USMF020-2	cURus TUV	20 ms	Polymeric	1210 (3225 Metric) Concave	AEC-Q200		400 mOhms	30 V	Automotive	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	200 mA	0.85 mm	0.033 in	400 mA	10 A	Surface Mount

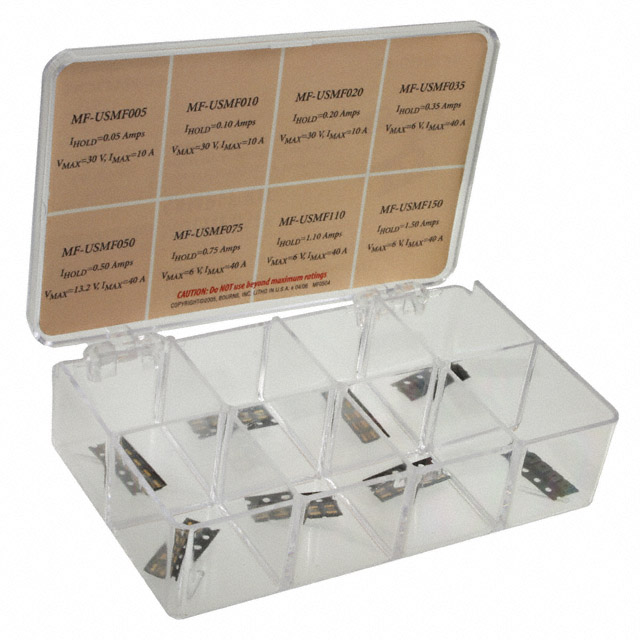

Bourns Inc. MF-USMFLAB																					Surface Mount	40 Pieces	6 VDC	30 V	0.05 A	1.5 A	1210	3225 Metric	PTC Resettable
