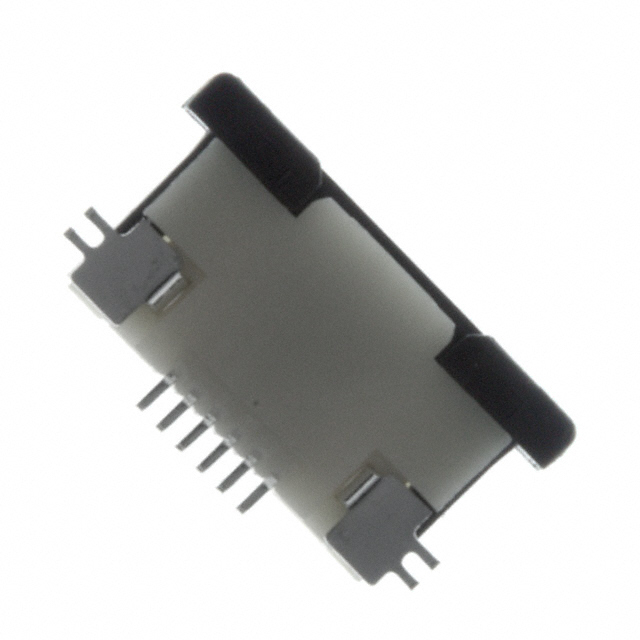

06FLZ-RS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN FFC BOTTOM 6POS 0.5MM R/A
| Part | Actuator Color | Current Rating (Amps) | Housing Color | Features | Mounting Type | Contact Finish | Material Flammability Rating | Locking Feature | Termination | Number of Positions | Flat Flex Type | Housing Material | Actuator Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector/Contact Type | Height Above Board | Height Above Board | FFC, FCB Thickness | Pitch | Pitch | Contact Material | Cable End Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Black | 0.5 A | Natural | Solder Retention Zero Insertion Force (ZIF) | Right Angle Surface Mount | Tin | UL94 V-0 | Slide Lock | Solder | 6 | FFC FPC | Nylon 6T Polyamide (PA6T) | Polyamide (PA6T) Nylon 6T | 50 V | 85 °C | -25 °C | Contacts Bottom | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Phosphor Bronze | Tapered |
