CKM12ATW Series

Catalog

KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A

Part	Electrical Life	Mechanical Life	Depth Behind Flange	Termination Style	Voltage Rating - AC	Key Removable Positions	Mounting Type	Circuit	Features	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Actuator Type	Contact Finish	Contact Timing	Switch Function	Panel Cutout Dimensions [diameter]	Angle of Throw
NKK Switches CKM12ATW01	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °
NKK Switches CKM12ATW01-007	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °

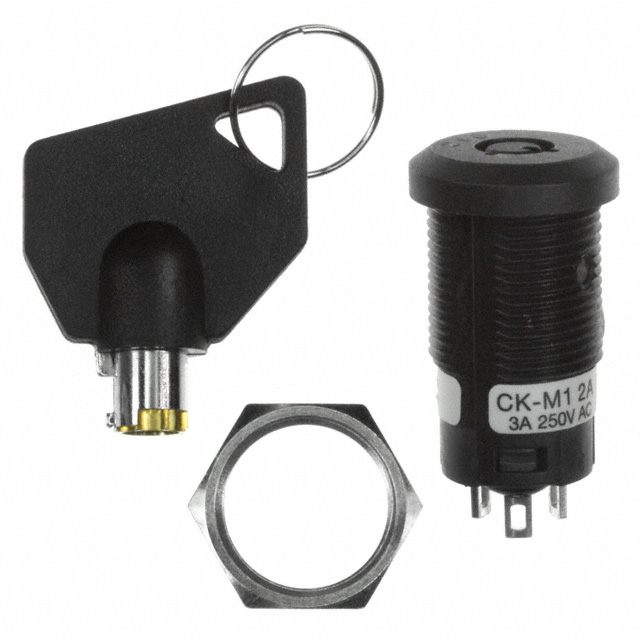

NKK Switches CKM12ATW01-012	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °
NKK Switches CKM12ATW01-005	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °
NKK Switches CKM12ATW01-006	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °
NKK Switches CKM12ATW01-002	10000 Cycles	30000 Steps	31.2 mm	Solder Lug	250 V	All	Panel Mount	SPDT	Epoxy Sealed Terminals	Silver (Ag)	3 A	-25 °C	70 °C	2	Tubular Key	Silver	Non-Shorting (BBM)	On-On	16 mm	90 °
