MKJ3A Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
TRINITY MKJ
| Part | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Insert Material | Connector Type | Primary Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Shell Finish | Fastening Type | Current Rating (Amps) | Termination | Shell Material | Orientation | Ingress Protection | Color | Contact Finish - Mating | Voltage Rating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
 ITT Cannon, LLC | Aerospace Communication Systems Industrial Instrumentation Medical | Free Hanging (In-Line) | -65 ░C | 175 °C | Shielded | Thermoplastic | Plug Female Sockets | Metal | 10 | 50 µin | 1.27 µm | Copper Alloy | Black Zinc Nickel | Bayonet Lock | 5 A | Crimp | Aluminum Alloy | N (Normal) | Environment Resistant | Black | Gold | ||||

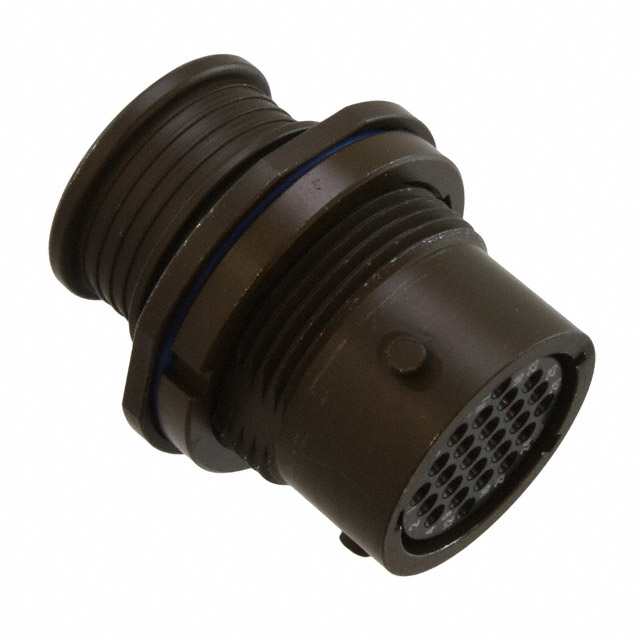

 ITT Cannon, LLC | Panel Mount | -55 C | 150 °C | Shielded | Receptacle Female Sockets | Metal | 26 | 50 µin | 1.27 µm | Olive Drab Cadmium | Bayonet Lock | 5 A | Crimp | Aluminum Alloy | N (Normal) | Environment Resistant | Olive Drab | Gold | 500 VAC | 26 | 10 | Bulkhead - Front Side Nut | |||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||

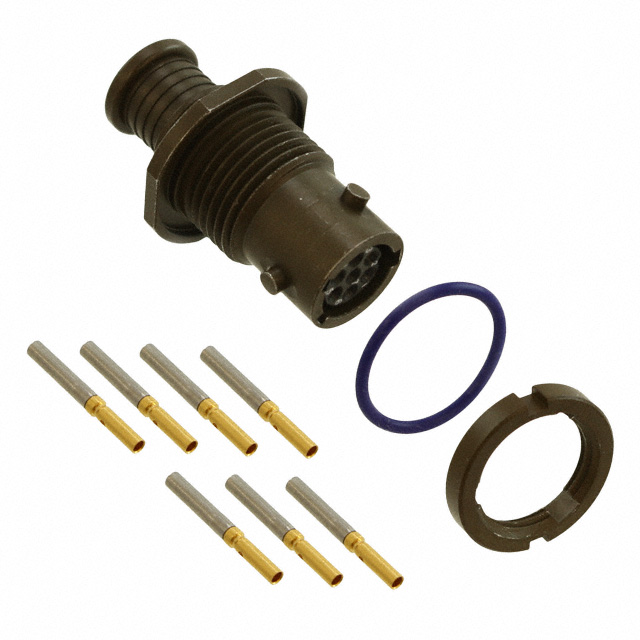

 ITT Cannon, LLC | Panel Mount | -55 C | 150 °C | Shielded | Receptacle Female Sockets | Metal | 7 | 50 µin | 1.27 µm | Olive Drab Cadmium | Bayonet Lock | 5 A | Crimp | Aluminum Alloy | N (Normal) | Environment Resistant | Olive Drab | Gold | 500 VAC | 7 | 6 | Bulkhead - Front Side Nut | |||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC |
