CRL0805 Series

Catalog

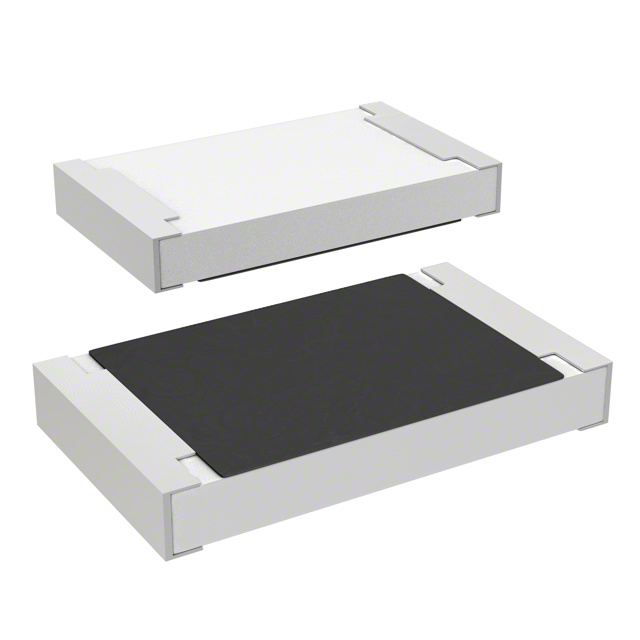

RES 3.3 OHM 5% 1/4W 0805

Part	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Power (Watts)	Power (Watts)	Package / Case	Temperature Coefficient	Resistance	Tolerance	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. CRL0805-JW-3R30ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	3.3 Ohms	5 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-R120ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	0.12 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-R130ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	0.13 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-JW-R820ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	820 mOhms	5 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-5R10ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	5.1 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-5R60ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	5.6 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-JW-1R10ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	1.1 Ohms	5 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-1R20ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	1.2 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-3R30ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	3.3 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
Bourns Inc. CRL0805-FW-2R70ELF	155 C	-55 C	Thick Film	0.6 mm	0.024 in	0805	0.25 W	0.25 W	0805	200 ppm/°C	2.7 Ohms	1 %	2	2 mm	1.25 mm	0.049 "	0.079 in
