HPBO Series
Manufacturer: c3controls
Beta
⌘K

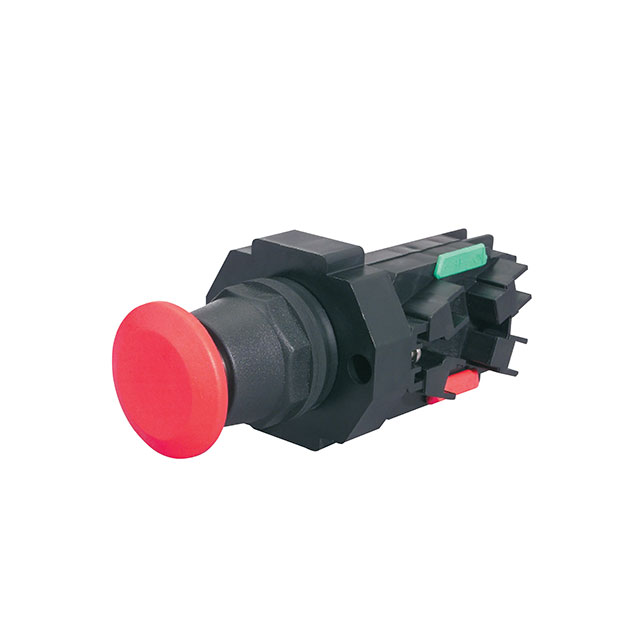

SWITCH E-STOP PULL RESET 10A 72V
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Circuit | Switch Function | Ingress Protection | Mounting Type | Voltage Rating - AC | Reset Operation | Current Rating (Amps) | Mechanical Life | Actuator Type | Color - Actuator/Cap | Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | Screw Terminal | 55 °C | -40 C | 28 V | 30 mm | DPST-NO/NC | Off-On On-Off | IP65 - Dust Tight Water Resistant | Panel Mount Rear | 72 V | Pull | 5 A 10 A | |||||

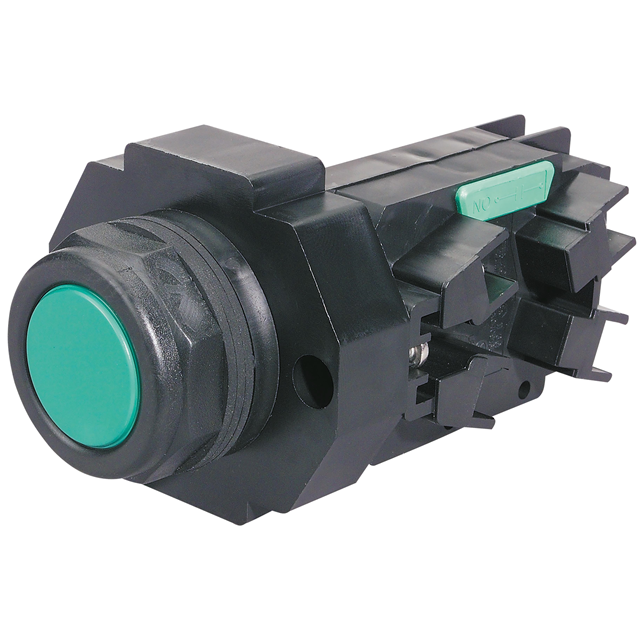

 c3controls | Screw Terminal | 55 °C | -40 C | 28 V | 30 mm | DPST-NO/NC | Off-Mom On-Mom | IP65 - Dust Tight Water Resistant | Panel Mount Rear | 72 V | 5 A 10 A | 250000 Cycles | Button Flush Round | Green | Standard | No Marking |
