LD16W Series

Catalog

14~24V@700MA, PHASE DIMMING

Part	Weight	Weight	Mounting Type	Approval Agency	Termination Style	Ratings	Standard Number	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Features	Topology	Power (Watts)	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]

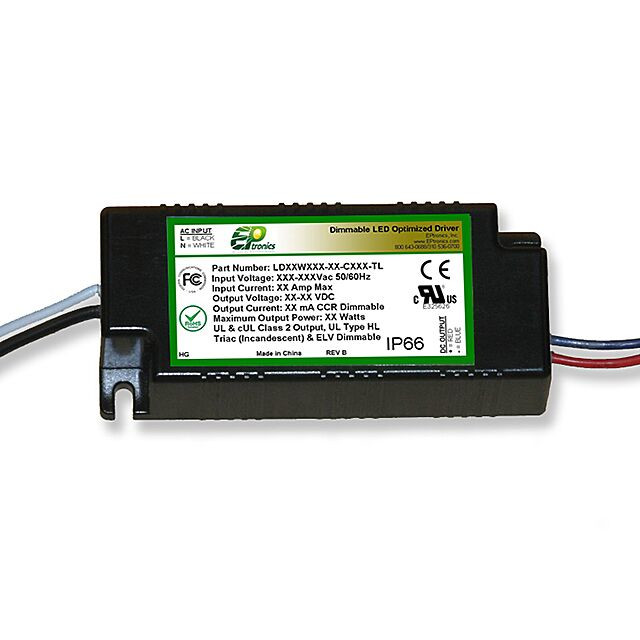

EPtronics, Inc. LD16W230-24-C0700-TL	166.92 g	0.368 lb	Chassis Mount	CE cURus FCC	Wire Leads	IP66	C22.2 UL 8750	ELV TRIAC	-30 ░C	60 °C	83 %	24 V	14 V	277 VAC	700 mA	Constant Current	OCP OVP SCP	AC DC Converter	16.8 W	3750 VDC	1	220 VAC	1.61 in	95 mm	40.9 mm	24.9 mm	3.74 "	0.98 in
EPtronics, Inc. LD16W120-46-C0350-TL	166.92 g	0.368 lb	Chassis Mount	CE cURus FCC	Wire Leads	IP66	C22.2 UL 8750	ELV TRIAC	-30 ░C	60 °C	85 %	46 V	28 V	132 VAC	350 mA	Constant Current	OCP OVP SCP	AC DC Converter	16.1 W	3750 VDC	1	108 VAC	1.61 in	95 mm	40.9 mm	24.9 mm	3.74 "	0.98 in
