32056 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

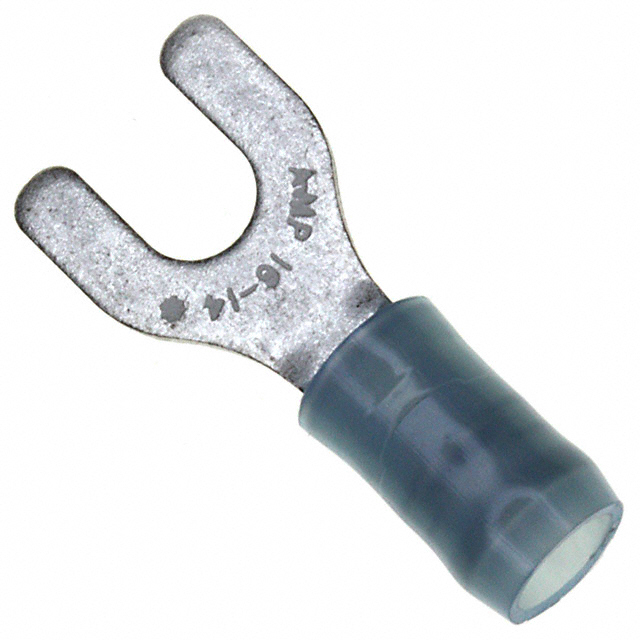

CONN SPADE TERM 14-16AWG #8 BLU
| Part | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Length - Termination | Length - Termination | Insulation | Terminal Type | Termination | Contact Material | Material - Insulation | Color | Stud/Tab Size | Length - Ring Center to Termination | Length - Ring Center to Termination [x] | Contact Finish | Features | Mounting Type | Length - Overall [x] | Length - Overall | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Width - Outer Edges [x] | Width - Outer Edges [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.171 in | 4.34 mm | 0.404 " | 10.26 mm | Insulated | Standard | Crimp | Copper | Nylon Polyamide (PA) | Blue | 8 Stud | 7.92 mm | 0.312 in | Tin | Serrated Termination | Free Hanging (In-Line) | 0.908 " | 23.06 mm | 0.105 in | 3.81 mm | 2.67 mm | 0.15 " | 0.375 in | 9.53 mm |
