LNJ814 Series

Catalog

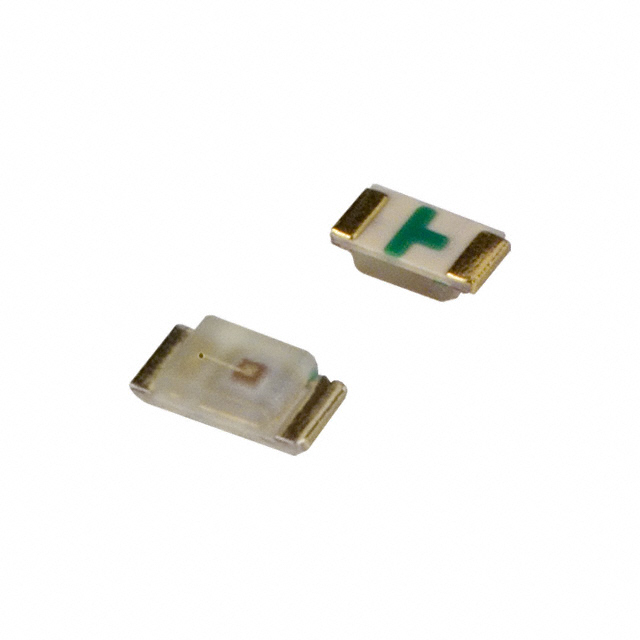

LED ORANGE HIGH BRIGHT USS 0603

Part	Current - Test	Lens Style	Package / Case	Millicandela Rating	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]	Wavelength - Peak	Wavelength - Dominant	Mounting Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Configuration
Panasonic Industrial Automation Sales LNJ814W83RA	5 mA	Rectangle with Flat Top	0603 (1608 Metric)	15 mcd	0.5 mm	0.8 mm	1.1 mm	630 nm	620 nm	Surface Mount	1.9 V	1.6 mm	0.8 mm
Panasonic Industrial Automation Sales LNJ814K87RA	10 mA	Rectangle with Flat Top	0603 (1608 Metric)	21 mcd	0.5 mm	0.8 mm	1.1 mm	615 nm		Surface Mount	1.95 V	1.6 mm	0.8 mm	Standard
Panasonic Industrial Automation Sales LNJ814R88RA	10 mA	Rectangle with Flat Top	0603 (1608 Metric)	30 mcd	0.5 mm	0.8 mm	1.1 mm	620 nm		Surface Mount	1.95 V	1.6 mm	0.8 mm	Standard
