SDF-S15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DA, SOLDER CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Color | Connector Type | Current Rating (Amps) | Shell Material, Finish | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Connector Style | Flange Feature | Contact Type | Shell Size, Connector Layout | Material Flammability Rating | Number of Positions | Ingress Protection | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

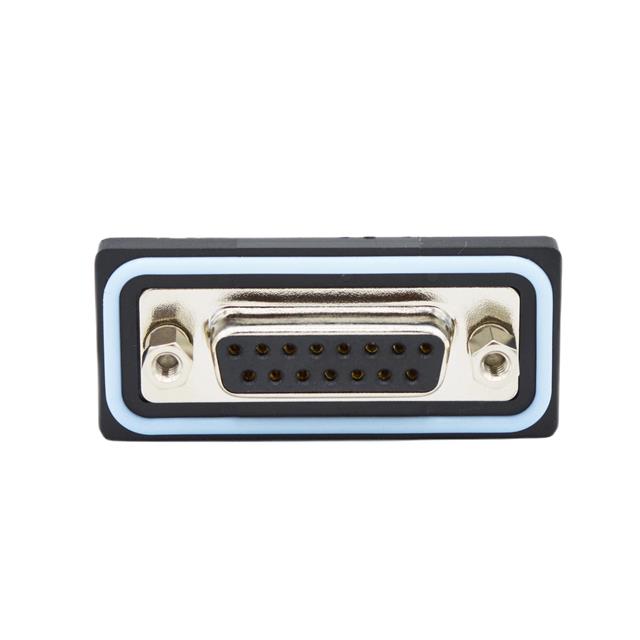

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Receptacle Female Sockets | 5 A | Nickel Plated Steel | 2 | 30 Áin | 0.76 Ám | Gold | Panel Mount | D-Sub | 4-40 Mating Side Female Screwlock | Signal | 2 | UL94 V-0 | 15 | IP67 - Dust Tight Waterproof | ||

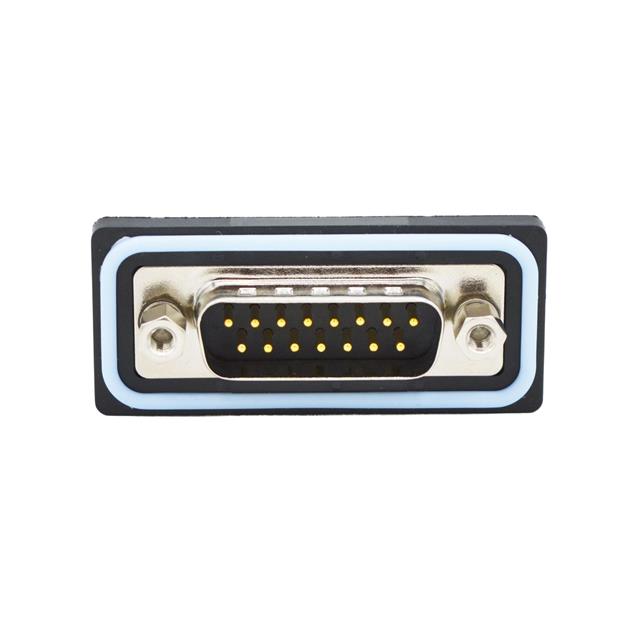

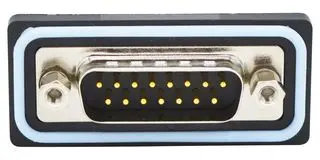

 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Plug Male Pins | 5 A | Nickel Plated Steel | 2 | Gold | Panel Mount | D-Sub | 4-40 Mating Side Female Screwlock | Signal | 2 | UL94 V-0 | 15 | IP67 - Dust Tight Waterproof | Grounding Indents | Flash | ||
 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Receptacle Female Sockets | 5 A | Nickel Plated Steel | 2 | Gold | Panel Mount | D-Sub | 4-40 Mating Side Female Screwlock | Signal | 2 | UL94 V-0 | 15 | IP67 - Dust Tight Waterproof | Flash | |||
 NorComp Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Black | Plug Male Pins | 5 A | Nickel Plated Steel | 2 | 30 Áin | 0.76 Ám | Gold | Panel Mount | D-Sub | 4-40 Mating Side Female Screwlock | Signal | 2 | UL94 V-0 | 15 | IP67 - Dust Tight Waterproof | Grounding Indents |
