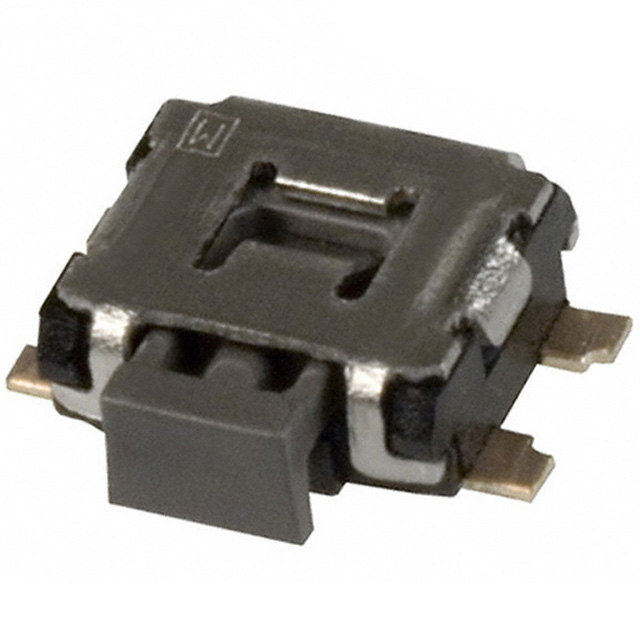

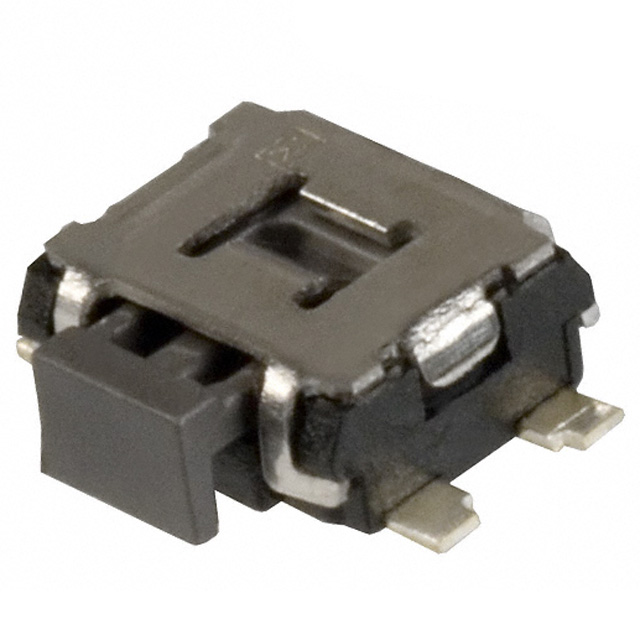

EVQ-P7 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Illumination	Contact Rating @ Voltage	Mechanical Life	Mounting Type	Outline [y]	Outline [x]	Circuit	Actuator Orientation	Actuator Type	Termination Style	Switch Function	Operating Force	Features
Panasonic Industrial Automation Sales EVQ-P7K01K	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.3 mm	SPST-NO	Side Actuated	Rectangular Button	J Lead	Off-Mom
Panasonic Industrial Automation Sales EVQ-P7D01P	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.3 mm	SPST-NO	Side Actuated	Rectangular Button	J Lead	Off-Mom	220 gf	Board Guide
Panasonic Industrial Automation Sales EVQ-P7B01P	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.3 mm	SPST-NO	Side Actuated	Rectangular Button	J Lead	Off-Mom	220 gf
Panasonic Industrial Automation Sales EVQ-P7B01K	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.3 mm	SPST-NO	Side Actuated	Rectangular Button	J Lead	Off-Mom	220 gf
Panasonic Industrial Automation Sales EVQ-P7J01K	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.7 mm	SPST-NO	Side Actuated	Rectangular Button	Gull Wing	Off-Mom
Panasonic Industrial Automation Sales EVQ-P7L01K	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.7 mm	SPST-NO	Side Actuated	Rectangular Button	Gull Wing	Off-Mom		Board Guide
Panasonic Industrial Automation Sales EVQ-P7C01P	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.7 mm	SPST-NO	Side Actuated	Rectangular Button	Gull Wing	Off-Mom	220 gf	Board Guide

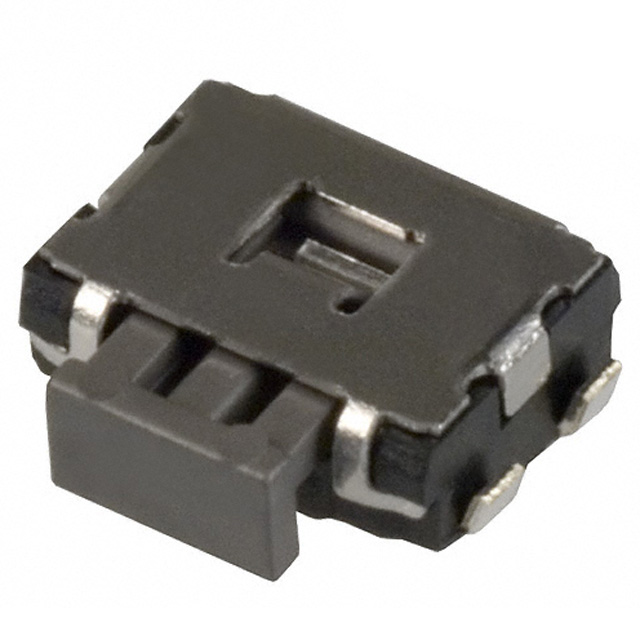

Panasonic Industrial Automation Sales EVQ-P7M01P	-20 C	70 °C	0.2 mm	Non-Illuminated	0.05 A 12 VDC	100000 Cycles	Surface Mount Right Angle	2.9 mm	4.3 mm	SPST-NO	Side Actuated	Rectangular Button	J Lead	Off-Mom		Board Guide
