9TN48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

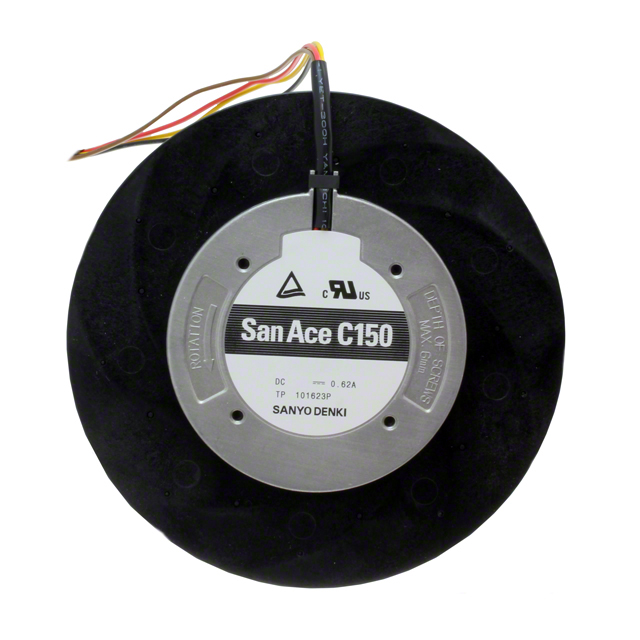

FAN AXIAL 150X35MM 48VDC WIRE
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Air Flow | Air Flow | Features | Approval Agency | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Noise | Bearing Type | RPM | Static Pressure | Static Pressure | Width | Voltage - Rated | Fan Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 320 mA | 40000 Hrs | Plastic | 55.2 VDC | 36 VDC | Aluminum | 135 CFM | 3.78 mł/min | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CSA TUV UL | 15.4 W | 150 mm | 150 mm | 59 dB(A) | Ball | 3800 RPM | 1.57 in H2O | 391.1 Pa | 35 mm | 48 VDC | Tubeaxial | 4 Wire Leads | -20 ░C | 70 °C | 0.728 lb | 330.22 g |
