ELL-VGG Series

Catalog

FIXED IND 1.6UH 1.55A 73MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Tolerance	Inductance Frequency - Test	Shielding	Package / Case	Current Rating (Amps)	Current - Saturation (Isat)

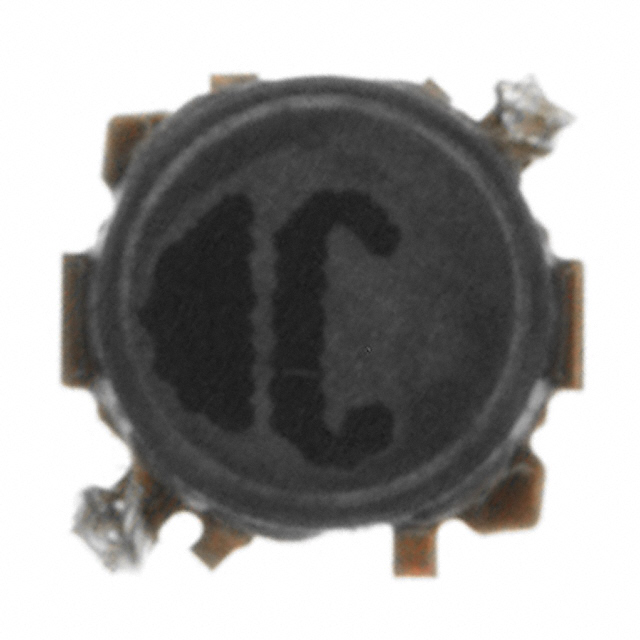

Panasonic Industrial Automation Sales ELL-VGG1R6N	1.5 mm	0.059 "	73 mOhm	Wirewound	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	1.6 µH	30 %	100 kHz	Shielded	Nonstandard	1.55 A	1.8 A
Panasonic Industrial Automation Sales ELL-VGG3R9N	1.5 mm	0.059 "	150 mOhm	Wirewound	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3.9 µH	30 %	100 kHz	Shielded	Nonstandard	1 A	1.3 A

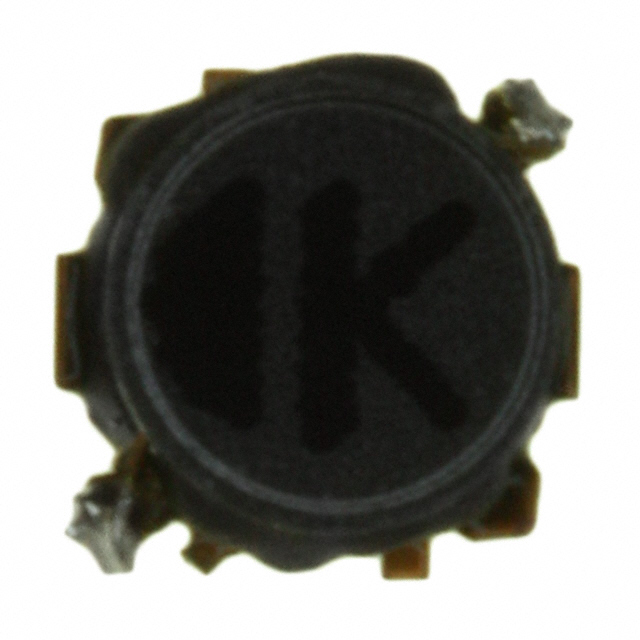

Panasonic Industrial Automation Sales ELL-VGG6R8N	1.5 mm	0.059 "	230 mOhm	Wirewound	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	6.8 µH	30 %	100 kHz	Shielded	Nonstandard	800 mA	1 A

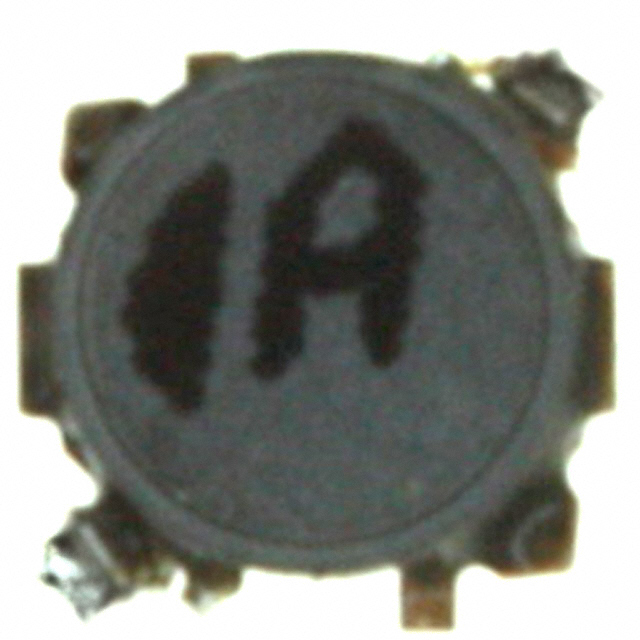

Panasonic Industrial Automation Sales ELL-VGG1R0N	1.5 mm	0.059 "	52 mOhm	Wirewound	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	1 µH	30 %	100 kHz	Shielded	Nonstandard	1.8 A	2.2 A

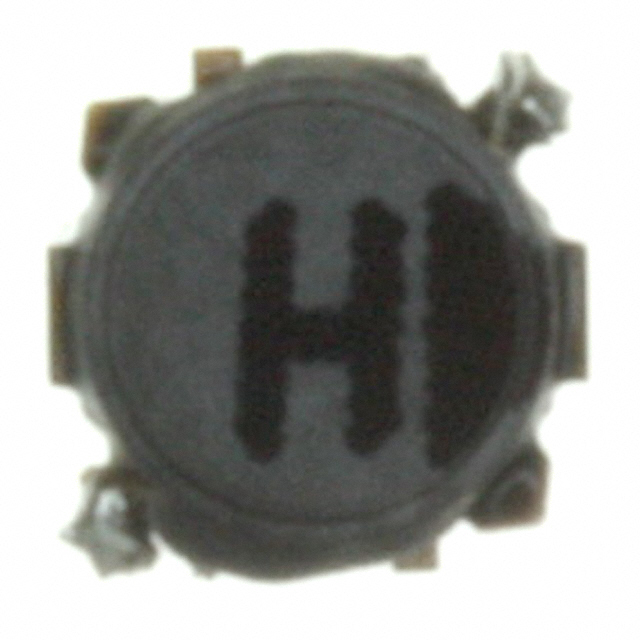

Panasonic Industrial Automation Sales ELL-VGG4R7N	1.5 mm	0.059 "	170 mOhm	Wirewound	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	4.7 ÁH	30 %	100 kHz	Shielded	Nonstandard	0.98 A	1.2 A
