50M035060 Series

Catalog

90 PHILLIPS CSK SCREW, M3.5 X .6

Part	Screw Head Type	Length - Below Head [x]	Length - Below Head [x]	Type	Head Diameter [diameter]	Head Diameter	Drive Type	Head Height	Head Height	Length - Overall	Length - Overall	Material	Thread Size	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head	Head Diameter
Essentra Components 50M035060I010	Flat Head	0.303 in	7.7 mm	Machine Screw	0.323 in	8.2 mm	Phillips	2.3 mm	0.091 "	10 mm	0.394 in	Nylon	M3.5x0.6
Essentra Components 50M035060I025	Flat Head	0.894 in	22.7 mm	Machine Screw	0.323 in	8.2 mm	Phillips	2.3 mm	0.091 "			Nylon	M3.5x0.6	0.984 in	25 mm
Essentra Components 50M035060I008	Flat Head	0.224 in		Machine Screw	0.323 in	8.2 mm	Phillips	2.3 mm	0.091 "	8 mm		Nylon	M3.5x0.6	0.315 in		5.7 mm
Essentra Components 50M035060D035	Cheese Head			Bolt	0.236 in	6 mm	Slotted	2.4 mm	0.094 "	37.4 mm	1.472 in	Nylon	M3.5x0.6
Essentra Components 50M035060M020	Oval Head	0.697 in	17.7 mm	Machine Screw	0.323 in	8.2 mm	Phillips	3.1 mm	0.122 "	20.8 mm	0.819 "	Nylon	M3.5x0.6
Essentra Components 50M035060I035	Flat Head			Machine Screw	0.323 in	8.2 mm	Phillips	2.3 mm	0.091 "	35 mm		Nylon	M3.5x0.6	1.378 "		32.7 mm	1.287 in
Essentra Components 50M035060K005	Hex Head	0.197 in	5 mm	Bolt		5.5 mm	Slotted					Nylon	M3.5x0.6	0.299 in	7.6 mm			0.217 in

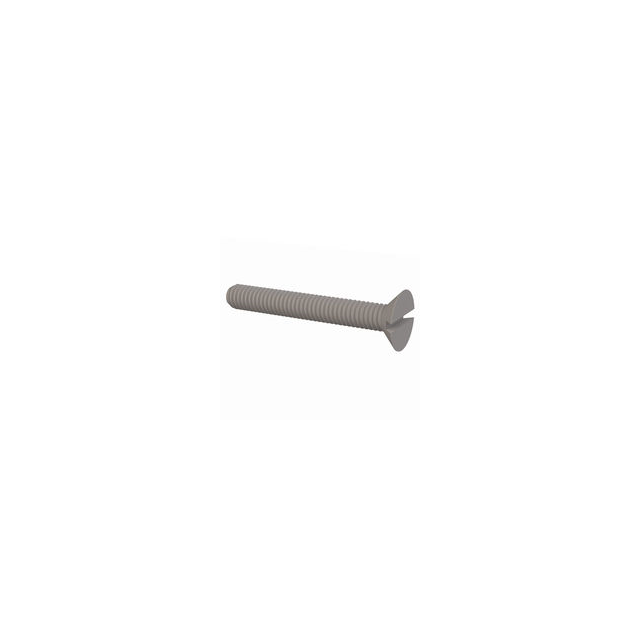

Essentra Components 50M035060H025	Flat Head	0.894 in	22.7 mm	Machine Screw	0.323 in	8.2 mm	Slotted	2.3 mm	0.091 "			Nylon	M3.5x0.6	0.984 in	25 mm
Essentra Components 50M035060J012	Hex Head	0.472 "	12 mm	Bolt		5.5 mm	Hex Socket					Nylon	M3.5x0.6	0.575 in	14.6 mm			0.217 in

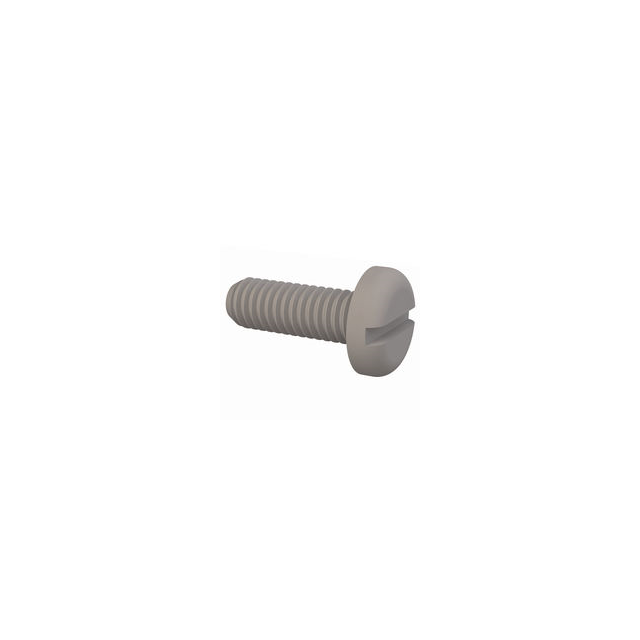

Essentra Components 50M035060N010	Pan Head	0.394 in	10 mm	Machine Screw	0.276 in	7 mm	Slotted			12.1 mm	0.476 in	Nylon	M3.5x0.6
