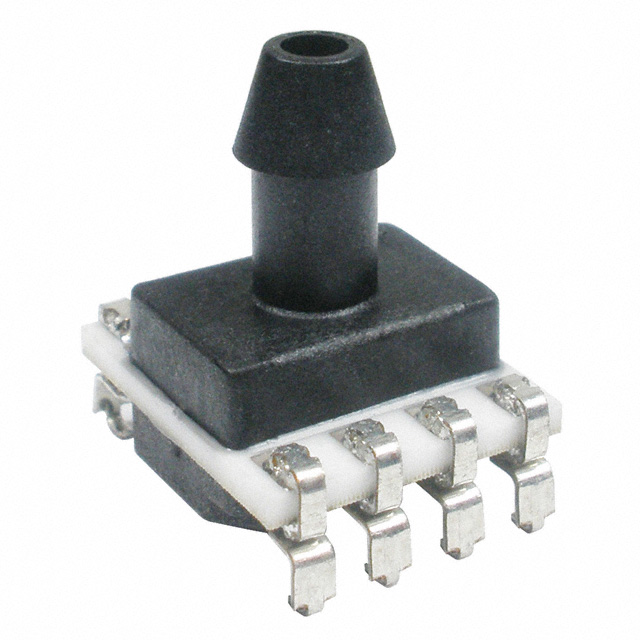

SSCMANN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 100PSIG 0.19" 4.5V 8SMT

Part	Output Type	Output [Max]	Output [Min]	Supplier Device Package	Accuracy	Operating Pressure	Operating Pressure	Package / Case	Applications	Features	Mounting Type	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Port Size	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Operating Pressure
Honeywell Sensing and Productivity Solutions SSCMANN100PGAA5	Analog Voltage	4.5 V	0.5 V	8-SMT	0.25 %	689.48 kPa	100 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount	250 PSI	1723.69 kPa	Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	4.75 V	5.25 V	Barbed
Honeywell Sensing and Productivity Solutions SSCMANN006BGAA3	Analog Voltage	2.97 V	0.33 V	8-SMT	0.25 %	6 bar	87.02 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount		1700 kPa	Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	3 V	3.6 V	Barbed	246.56 PSI

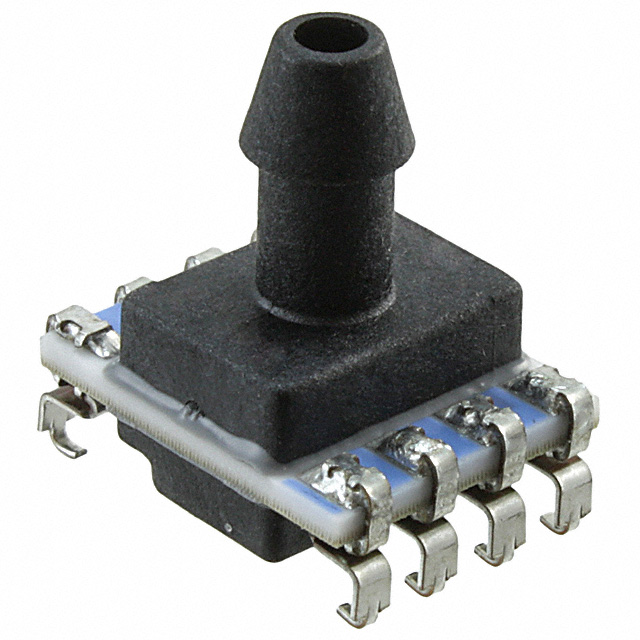

Honeywell Sensing and Productivity Solutions SSCMANN150PGAA3	Analog Voltage	2.97 V	0.33 V	8-SMT	0.25 %	1034.21 kPa	150 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount	250 PSI	1723.69 kPa	Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	3 V	3.6 V	Barbed
Honeywell Sensing and Productivity Solutions SSCMANN001PG2A5	I2C			8-SMT	0.25 %	6.89 kPa	1 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount			Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	4.75 V	5.25 V	Barbed	10 PSI	68.95 kPa	12 b
Honeywell Sensing and Productivity Solutions SSCMANN030PG2A3	I2C			8-SMT	0.25 %	206.84 kPa	30 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount			Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	3 V	3.6 V	Barbed	60 PSI	413.69 kPa	12 b
Honeywell Sensing and Productivity Solutions SSCMANN006BG2A3	I2C			8-SMT	0.25 %	6 bar	87.02 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount		1700 kPa	Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	3 V	3.6 V	Barbed	246.56 PSI		12 b
Honeywell Sensing and Productivity Solutions SSCMANN001PGAA3	Analog Voltage	2.97 V	0.33 V	8-SMT	0.25 %	6.89 kPa	1 PSI	8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount			Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Vented Gauge	3 V	3.6 V	Barbed	10 PSI	68.95 kPa
Honeywell Sensing and Productivity Solutions SSCMANN001PD2A5	I2C			8-SMT	0.25 %			8-SMD J-Lead Top Port	Board Mount	Amplified Output Temperature Compensated	Surface Mount	10 PSI	68.95 kPa	Male Tube	0.19 in	4.93 mm	SMD (SMT) Tab	85 °C	-40 C	Differential	4.75 V	5.25 V	Barbed			12 b	±1PSI (±6.89kPa)
