LP38502-ADJ Series

1.5-A, adjustable ultra-low-dropout voltage regulator with enable

Catalog

1.5-A, adjustable ultra-low-dropout voltage regulator with enable

Part	Voltage - Output (Max)	PSRR [Min]	PSRR [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Supplier Device Package	Protection Features	Voltage - Input (Max) [Max]	Current - Output	Voltage Dropout (Max) [Max]	Control Features	Output Configuration	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Mounting Type	Number of Regulators	Output Type	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Channels per IC	Supplied Contents	Regulator Type	Board Type	Utilized IC / Part
Texas Instruments LP38502TS-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	TO-263 (DDPAK-5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA
Texas Instruments LP38502TSX-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	TO-263 (DDPAK-5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA
Texas Instruments LP38502TS-ADJEV										1.5 A										2.7 V	5.5 V	2.5 V	1 - Single	Board(s)	Positive Adjustable	Fully Populated	LP38502
Texas Instruments LP38502ASD-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	8-WSON (3x2.5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	8-WFDFN Exposed Pad
Texas Instruments LP38502SDE-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	8-WSON (3x2.5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	8-WFDFN Exposed Pad
Texas Instruments LP38502SDX-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	8-WSON (3x2.5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	8-WFDFN Exposed Pad
Texas Instruments LP38502SD-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	8-WSON (3x2.5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	8-WFDFN Exposed Pad

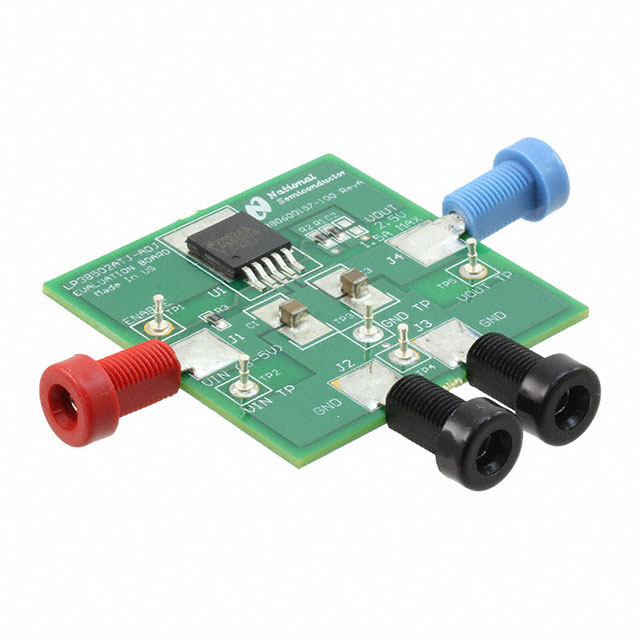

Texas Instruments LP38502ATJ-EV										1.5 A										2.7 V	5.5 V	2.5 V	1 - Single	Board(s)	Positive Adjustable	Fully Populated	LP38502A
Texas Instruments LP38502TJ-ADJEV										1.5 A										2.7 V	5.5 V	2.5 V	1 - Single	Board(s)	Positive Adjustable	Fully Populated	LP38502
Texas Instruments LP38502ASDX-ADJ/NOPB	5 V	56 dB	58 dB	125 °C	-40 °C	0.6 V	8-WSON (3x2.5)	Over Current Over Temperature Short Circuit	5.5 V	1.5 A	0.37	Enable	Positive	15 µA	4 mA	Surface Mount	1	Adjustable	8-WFDFN Exposed Pad

Catalog

1.5-A, adjustable ultra-low-dropout voltage regulator with enable

Key Features

• Input Voltage: 2.7 V to 5.5 VAdjustable Output Voltage: 0.6 V to 5 VFlexCap: Stable with Ceramic, Tantalum, orAluminum CapacitorsStable with 10-µF Input and Output CapacitorsLow Ground-Pin Current25-nA Quiescent Current in Shutdown ModeEnsured Output Current of 1.5 AEnsured VADJAccuracy of ±1.5% at 25°C (AGrade)Ensured Accuracy of ±3.5% at 25°C (STD)Overtemperature and Overcurrent ProtectionENABLE Pin (LP38502)Input Voltage: 2.7 V to 5.5 VAdjustable Output Voltage: 0.6 V to 5 VFlexCap: Stable with Ceramic, Tantalum, orAluminum CapacitorsStable with 10-µF Input and Output CapacitorsLow Ground-Pin Current25-nA Quiescent Current in Shutdown ModeEnsured Output Current of 1.5 AEnsured VADJAccuracy of ±1.5% at 25°C (AGrade)Ensured Accuracy of ±3.5% at 25°C (STD)Overtemperature and Overcurrent ProtectionENABLE Pin (LP38502)

Description

TI’s FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38500 and LP38502 series of LDOs operates from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38500-ADJ and LP38502-ADJ have low quiescent currents that changes little with load current. TI’s FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38500 and LP38502 series of LDOs operates from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38500-ADJ and LP38502-ADJ have low quiescent currents that changes little with load current.
