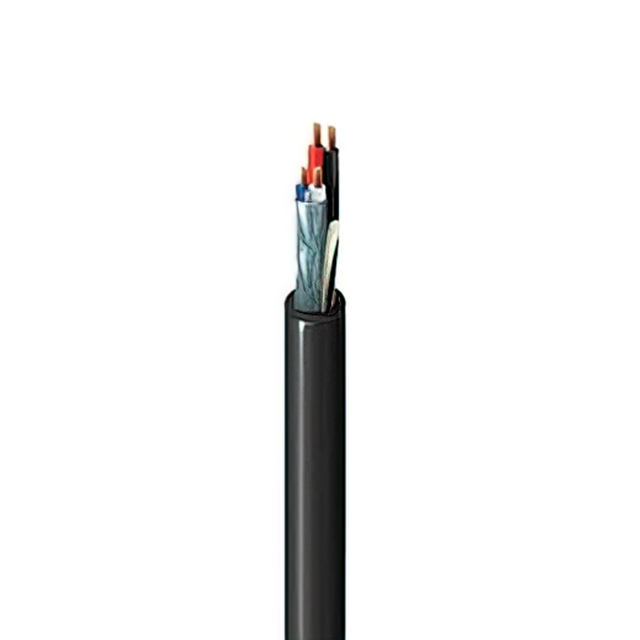

1392P Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 18/22AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Features | Jacket Color | Length | Length | Shield Type | Jacket (Insulation) Material | Number of Conductors | Voltage | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 75 ░C | 0 °C | UL Style CMP | 0.205 in | 5.21 mm | Copper Bare | Drain Wire | Natural | 304.8 m | 1000 ft | Foil | Plenum Poly-Vinyl Chloride (PVC) | 4 | 300 VDC | 18 AWG 22 AWG | 0.381 mm | 0.015 in | 7 Strands 19 | 30 | Automation and Lighting Control | Multi-Pair |
 Belden Inc. | Aluminum | 100 % | 75 ░C | 0 °C | UL Style CMP | 0.205 in | 5.21 mm | Copper Bare | Drain Wire | Black | 304.8 m | 1000 ft | Foil | Plenum Poly-Vinyl Chloride (PVC) | 4 | 300 VDC | 18 AWG 22 AWG | 0.381 mm | 0.015 in | 7 Strands 19 | 30 | Automation and Lighting Control | Multi-Pair |
