A221Y20V Series
Manufacturer: Nicomatic
Beta
⌘K
MALE 20POS STRAIGHT TRGH 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Fastening Type | Voltage Rating | Features | Contact Material | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Shrouding | Mounting Type | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Termination | Insulation Color | Contact Shape | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Material Flammability Rating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

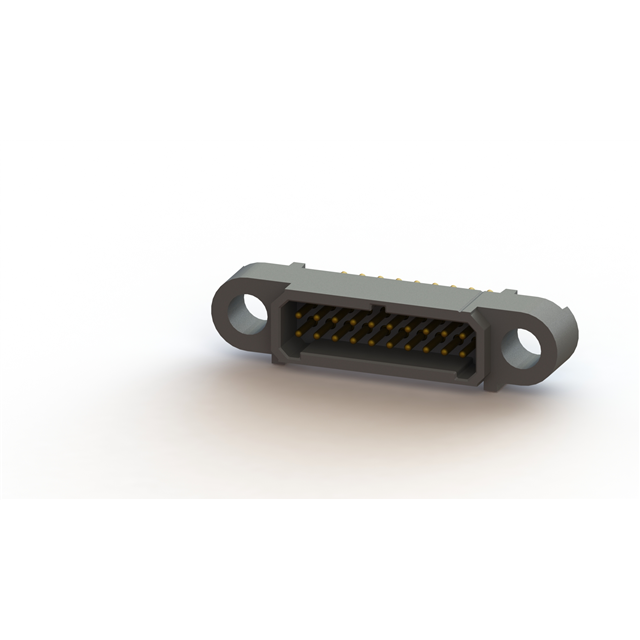

 Nicomatic | 0.15 µm | 5.9 µin | 20 | Push-Pull | 600 VAC | Mating Flange | Copper Alloy | Gold | -65 ░C | 200 °C | 2 | 5.9 µin | 0.15 µm | Shrouded - 4 Wall | Through Hole | All | 4.1 mm | 0.161 in | Gold | Solder | Black | Circular | Header | 1 mm | 0.039 in | Liquid Crystal Polymer (LCP) | Male Pin | 0.039 in | 1 mm | 2.5 A | UL94 V-0 | Board to Board Cable |

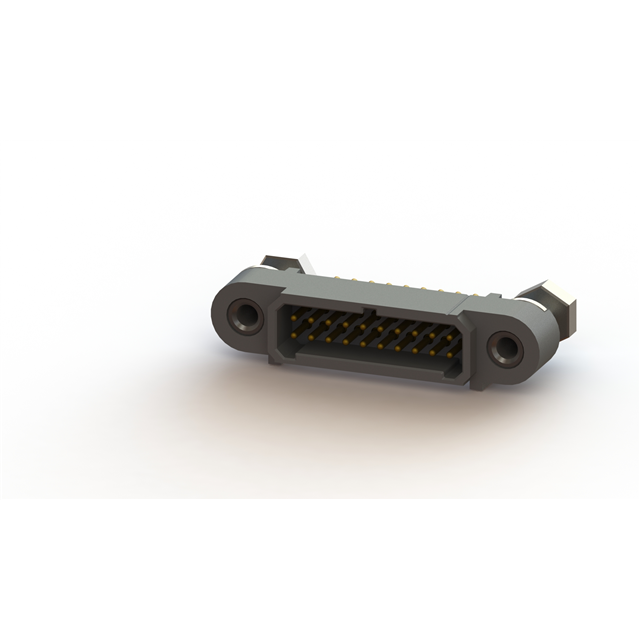

 Nicomatic | 0.15 µm | 5.9 µin | 20 | 600 VAC | Mating Flange Mounting Flange Mounting Hardware | Copper Alloy | Gold | -65 ░C | 200 °C | 2 | 5.9 µin | 0.15 µm | Shrouded - 4 Wall | Through Hole | All | 4.1 mm | 0.161 in | Gold | Solder | Black | Circular | Header | 1 mm | 0.039 in | Liquid Crystal Polymer (LCP) | Male Pin | 0.039 in | 1 mm | 2.5 A | UL94 V-0 | Board to Board Cable |
