R11475 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

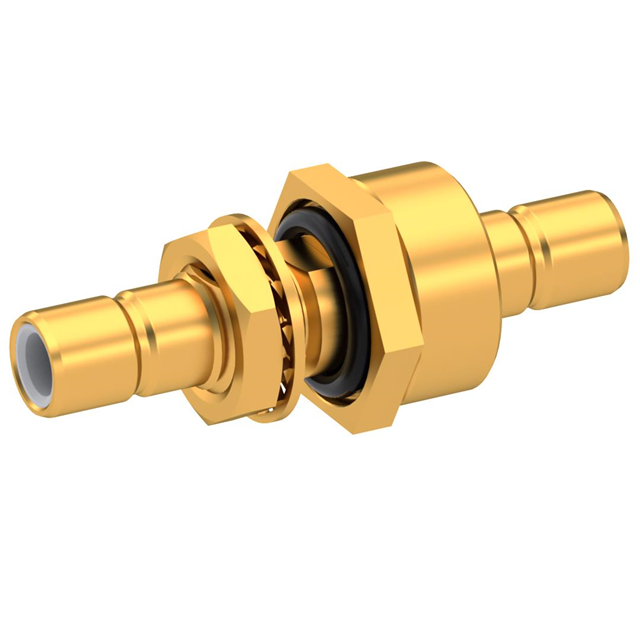

SMB / MALE-MALE HERMETIC ADAPTER
| Part | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Material | Convert To (Adapter End) | Center Gender | Center Contact Plating | Frequency - Max [Max] | Adapter Series | Style | Mounting Feature | Convert From (Adapter End) | Fastening Type | Fastening Type | Impedance | Conversion Type | Mounting Type | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | Brass | SMB Jack Male Pin | Male to Male | Gold | 4 GHz | SMB to SMB | Straight | Bulkhead | Male Pin SMB Jack | Snap-On | Snap-On | 50 Ohms | Same Series | Panel Mount | Jack to Jack |
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | Brass | SMB Jack Male Pin | Male to Male | Gold | 4 GHz | SMB to SMB | Straight | Bulkhead | Male Pin SMB Jack | Snap-On | Snap-On | 50 Ohms | Same Series | Panel Mount | Jack to Jack |
