FGA.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Primary Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Orientation	Shell Material	Insert Material	Mounting Type	Number of Positions	Shielding	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Material Flammability Rating	Contact Finish - Mating	Ingress Protection	Backshell Material, Plating	Color	Connector Type	Current Rating (Amps)	Shell Finish	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Shell Size - Insert [custom]

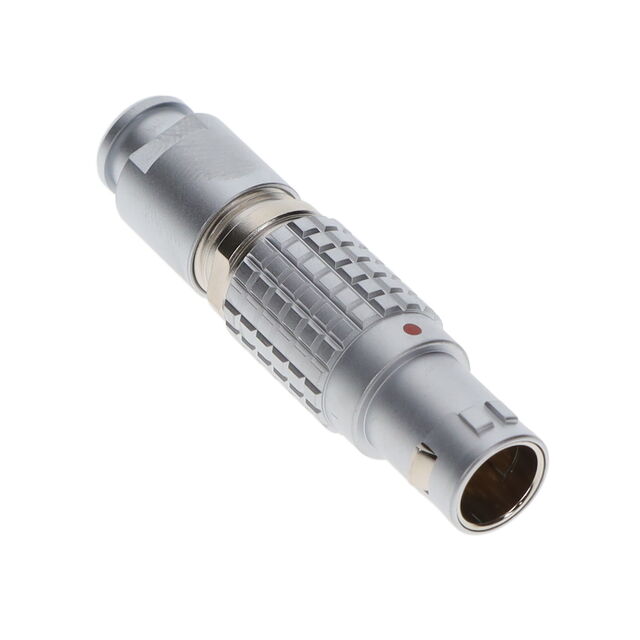

LEMO FGA.1B.308.CLAD62Z	Metal	308	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	8	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	6.2 mm	5.2 mm	0.205 in	0.244 "	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	5 A	Chrome
LEMO FGA.1B.302.CLAD62Z	Metal	302	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	2	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	6.2 mm	5.2 mm	0.205 in	0.244 "	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	15 A	Chrome

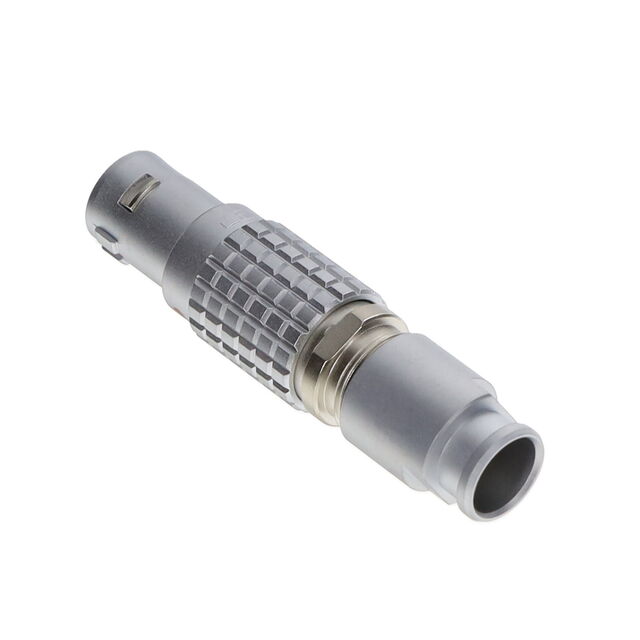

LEMO FGA.1B.314.CLAD72Z	Metal	314	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	14	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	7.2 mm	6.2 mm			UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	2 A	Chrome	0.244 in	0.283 in
LEMO FGA.1B.302.CLAD42Z	Metal	302	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	2	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	4.2 mm	3.1 mm	0.122 in	0.165 in	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	15 A	Chrome
LEMO FGA.1B.314.CLAD62Z	Metal	314	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	14	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	6.2 mm	5.2 mm	0.205 in	0.244 "	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	2 A	Chrome
LEMO FGA.1B.310.CLAM31	Metal	310	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	10	Shielded	Backshell	39.4 µin	1 µm	Push-Pull		2.7 mm	0.106 in	0.122 in	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	2.5 A	Chrome			3.1 mm
LEMO FGA.1B.307.CLAD72	Metal		-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	7	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	7.2 mm	6.2 mm			UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	7 A	Chrome	0.244 in	0.283 in		307
LEMO FGA.1B.310.CLAM27Z	Metal	310	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	10	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	2.7 mm	2.2 mm	0.087 in	0.106 in	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	2.5 A	Chrome
LEMO FGA.1B.308.KLAD42Z	Metal	308	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	8	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	4.2 mm	3.1 mm	0.122 in	0.165 in	UL94 V-0	Gold	IP50 - Dust Protected	Black Chrome Brass	Black	Plug Male Pins	5 A
LEMO FGA.1B.310.CLAD62	Metal	310	-55 C	250 °C	Brass	A	Brass	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	10	Shielded	Backshell	39.4 µin	1 µm	Push-Pull	6.2 mm	5.2 mm	0.205 in	0.244 "	UL94 V-0	Gold	IP50 - Dust Protected	Brass Chrome	Silver	Plug Male Pins	2.5 A	Chrome
