737-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions	Number of Positions/Bay/Row [custom]	Gender	Pitch	Pitch	Number of Rows [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination Rows	Number of Positions/Bay/Row	Number of Rows
EDAC Inc. 737-036-520-201	2	Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Dual
EDAC Inc. 737-036-540-106		Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36		Female	3.96 mm	0.156 in		Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Single	1	36	1
EDAC Inc. 737-036-560-201	2	Polyester Thermoplastic	Through Hole	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Dual

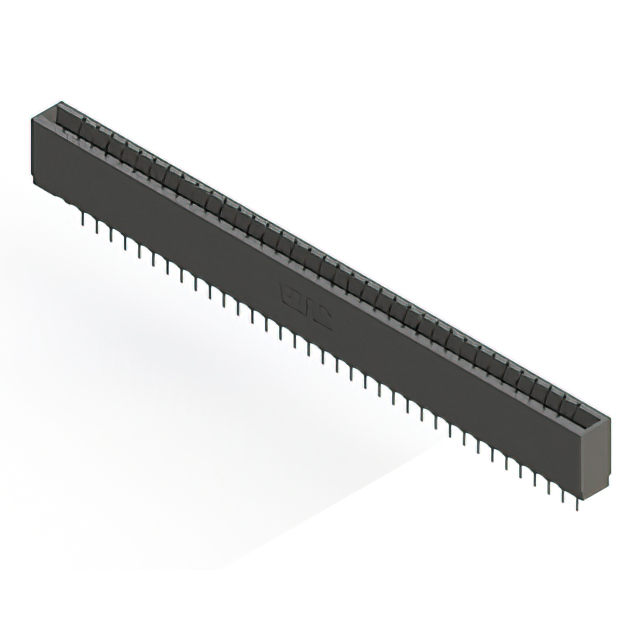

EDAC Inc. 737-036-522-101		Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36		Female	3.96 mm	0.156 in		Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Single	1	36	1
EDAC Inc. 737-036-525-201	2	Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Dual

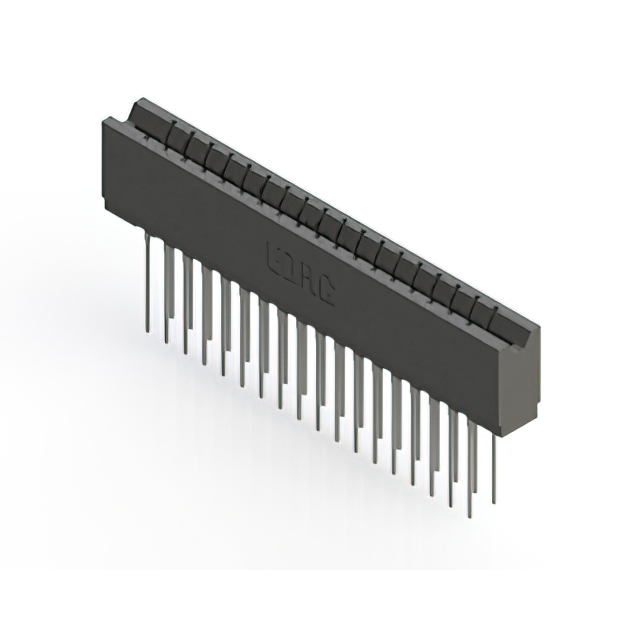

EDAC Inc. 737-036-541-206	2	Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Dual
EDAC Inc. 737-036-540-206	2	Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Dual
EDAC Inc. 737-036-545-106		Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36		Female	3.96 mm	0.156 in		Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Single	1	36	1
EDAC Inc. 737-036-520-106		Polyester Thermoplastic	Through Hole	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36		Female	3.96 mm	0.156 in		Non Specified - Single Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Single	1	36	1
EDAC Inc. 737-036-560-206	2	Polyester Thermoplastic	Through Hole	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	36	18	Female	3.96 mm	0.156 in	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	Copper Alloy	Press-Fit	Black	-40 C	105 ░C	Dual
