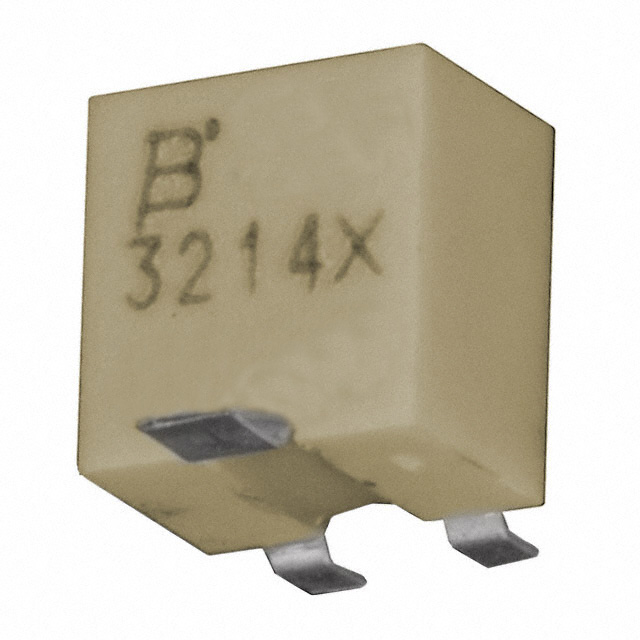

3214X Series

Catalog

TRIMMER 1K OHM 0.25W GW TOP ADJ

Part	Adjustment Type	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Tolerance	Number of Turns	Temperature Coefficient	Resistive Material	Termination Style
Bourns Inc. 3214X-2-102E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	1000 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-2-201E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	200 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-2-200E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	20 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-201E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	200 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-200E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	20 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-2-101E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	100 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-102E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	1000 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-204E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	200000 Ohms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-105E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	1 MOhms	10 %	5	100 ppm/°C	Cermet	Gull Wing
Bourns Inc. 3214X-1-202E	Top Adjustment	Surface Mount	0.25 W	0.25 W	0.138 in	4.8 mm	3.5 mm	0.189 "	2 kOhms	10 %	5	100 ppm/°C	Cermet	Gull Wing
