M2015B2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Switch Function	Illumination	Bushing Thread	Mounting Type	Voltage Rating - AC	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Current Rating (Amps)	Termination Style	Ingress Protection	Features
NKK Switches M2015B2B1W01-AT401H	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	Solder Lug
NKK Switches M2015B2B1W01-AT4181	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	Solder Lug

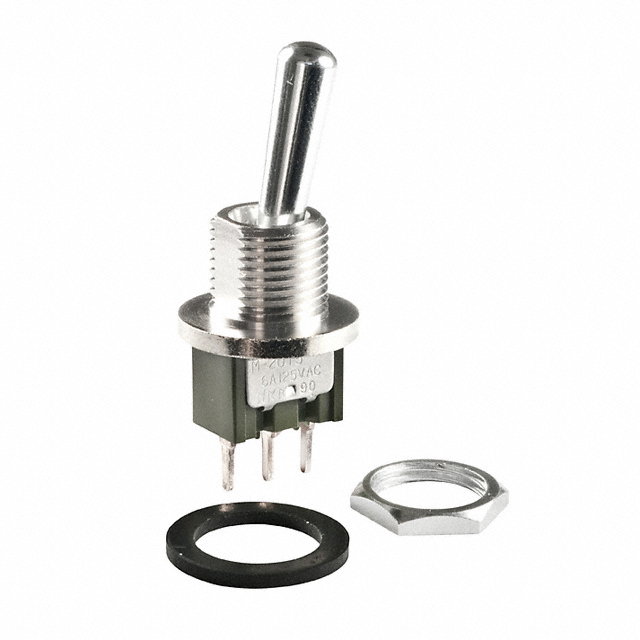

NKK Switches M2015B2B3W03	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	PC Pin	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals

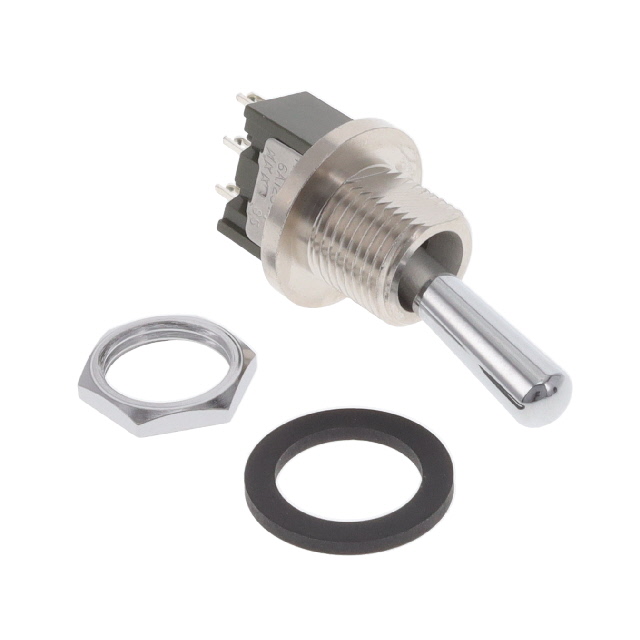

NKK Switches M2015B2B3W01	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	Solder Lug	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals

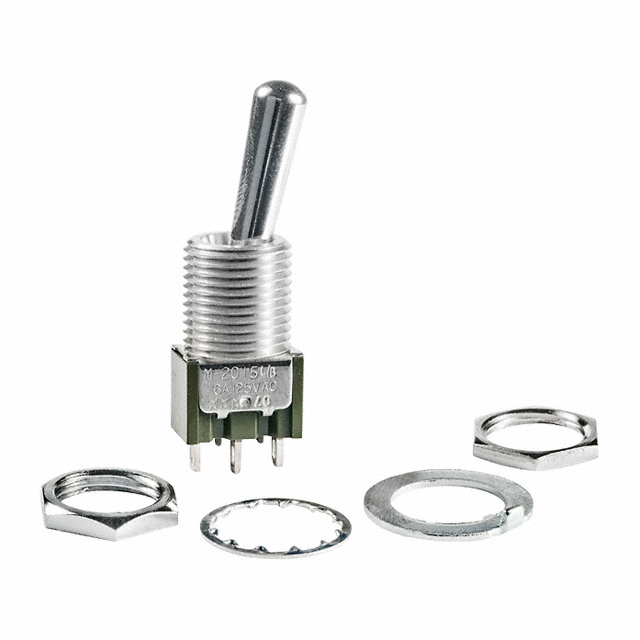

NKK Switches M2015B2B1W01	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	Solder Lug		Epoxy Sealed Terminals

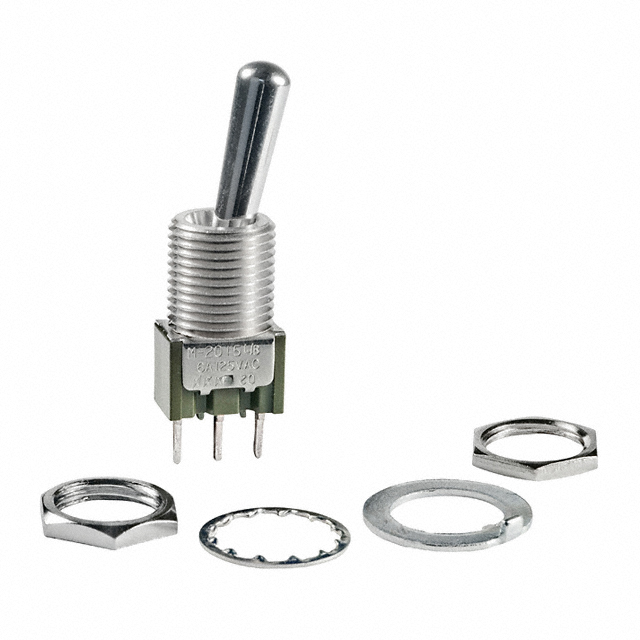

NKK Switches M2015B2B1W03	25000 Steps	Brass Chrome Plated	30 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	125 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	3 A 6 A	PC Pin		Epoxy Sealed Terminals
NKK Switches M2015B2B3G01	25000 Steps	Brass Chrome Plated	28 V	On-Mom	Non-Illuminated	M12 x 1	Panel Mount	28 V	17.5 mm	85 °C	-30 ░C	12.5 mm	SPDT	Standard Round	0.4 VA	Solder Lug	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals
