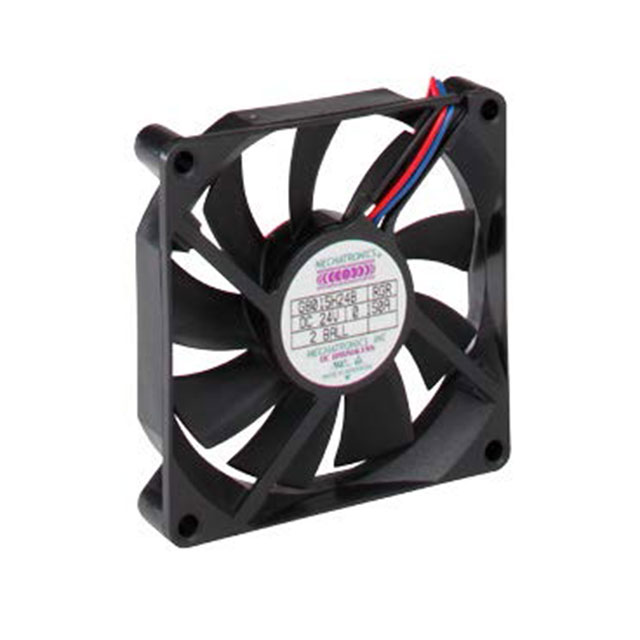

G8015 Series

Catalog

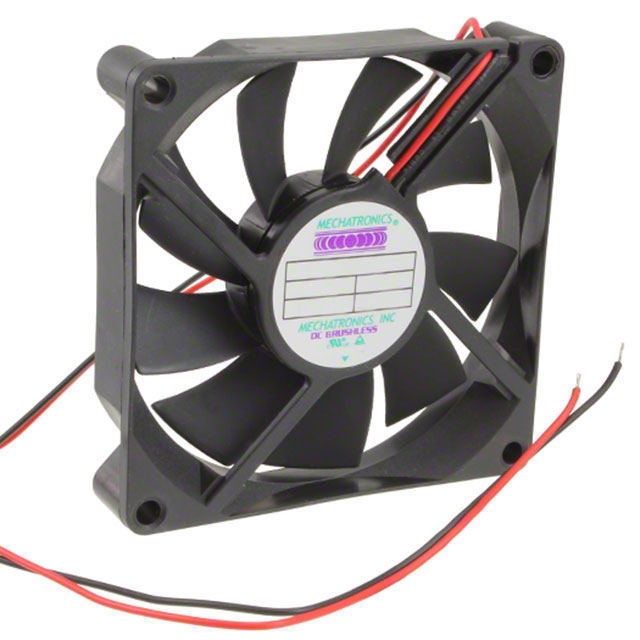

FAN AXIAL 80X15.3MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Termination	Fan Type	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Noise	Voltage - Rated	Ingress Protection	Bearing Type	Width [x]	Weight	Weight	Air Flow	Air Flow	Approval Agency	RPM	Features
Mechatronics Fan Group G8015H24B1-AGR-WS-EM	Polybutylene Terephthalate (PBT)	150 mA	4 Wire Leads	Tubeaxial	42.3 Pa	0.17 in H2O	80 mm	80 mm	36 dB	24 VDC	IP57 - Dust Protected Waterproof	Ball	15.3 mm	0.128 lb	58.06 g	1.04 mł/min	37 CFM	CE cUL TUV UL	4000 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015X12B1-RGR	Polybutylene Terephthalate (PBT)	0.35 A	3 Wire Leads	Tubeaxial	57.3 Pa	0.23 in H2O	80 mm	80 mm	40 dB(A)	12 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.2 m³/min	43 CFM	CE cUL TUV UL	4800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)

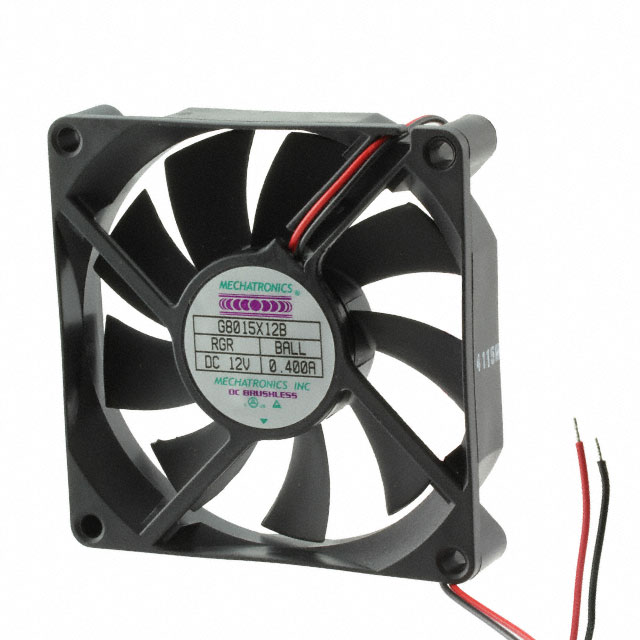

Mechatronics Fan Group G8015X12B-RGR	Polybutylene Terephthalate (PBT)	0.35 A	2 Wire Leads	Tubeaxial	57.3 Pa	0.23 in H2O	80 mm	80 mm	40 dB(A)	12 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.2 m³/min	43 CFM	CE cUL TUV UL	4800 RPM	Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015X12B1-RGR-TTL	Polybutylene Terephthalate (PBT)	0.35 A	3 Wire Leads	Tubeaxial	57.3 Pa	0.23 in H2O	80 mm	80 mm	40 dB(A)	12 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.2 m³/min	43 CFM	CE cUL TUV UL	4800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015E12B-RGR	Polybutylene Terephthalate (PBT)	320 mA	2 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	80 mm	80 mm	38 dB(A)	12 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.12 m³/min	40 CFM	CE cUL TUV UL	4400 RPM	Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015S24B-RGR-L15	Polybutylene Terephthalate (PBT)		2 Wire Leads	Tubeaxial	22.4 Pa	0.09 in H2O	80 mm	80 mm	28 dB	24 VDC		Ball	15.3 mm	0.128 lb	58.06 g	0.728 m³/min	26 CFM	CE cUL TUV UL	2800 RPM	Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015X24B1-RGR-L40	Polybutylene Terephthalate (PBT)	0.25 A	3 Wire Leads	Tubeaxial	57.3 Pa	0.23 in H2O	80 mm	80 mm	40 dB(A)	24 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.2 m³/min	43 CFM	CE cUL TUV UL	4800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015X12B-AGR-EM	Polybutylene Terephthalate (PBT)	0.35 A	2 Wire Leads	Tubeaxial	57.3 Pa	0.23 in H2O	80 mm	80 mm	40 dB(A)	12 VDC	IP57 - Dust Protected Waterproof	Ball	15.3 mm	0.128 lb	58.06 g	1.2 m³/min	43 CFM	CE cUL TUV UL	4800 RPM	Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015E24B1-RGR-TTL	Polybutylene Terephthalate (PBT)	0.18 A	3 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	80 mm	80 mm	38 dB(A)	24 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.12 m³/min	40 CFM	CE cUL TUV UL	4400 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G8015E24B1-RGR-WS-CC	Polybutylene Terephthalate (PBT)	0.18 A	4 Wire Leads	Tubeaxial	49.8 Pa	0.2 in H2O	80 mm	80 mm	38 dB(A)	24 VDC		Ball	15.3 mm	0.128 lb	58.06 g	1.12 m³/min	40 CFM	CE cUL TUV UL	4400 RPM	Alarm Sensor Conformal Coating Speed Sensor (Tach) Thermal Overload Protector (TOP)
