BFB0512 Series

Catalog

FAN BLOWER 50X10.3MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	RPM	Approval Agency	Features	Width [x]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Noise	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight [custom]	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Power (Watts)	Size / Dimension	Weight	Weight	Width [y]
Delta Electronics BFB0512MA-CR00	7 V	13.2 VDC	Plastic	30000 Hrs	Plastic	70 mA	4300 RPM	CE CSA UL VDE	Locked Rotor Sensor	10.3 mm	Ball	70 °C	-10 °C	Blower	28 dB	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.383 in H2O	95.4 Pa	0.081 m³/min	2.9 CFM	3 Wire Leads	840 mW
Delta Electronics BFB0512MD	5 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	Plastic		4100 RPM	CE CSA UL VDE			Ball	70 °C	-10 °C	Blower	32 dB	50 mm	50 mm			12 VDC	0.387 in H2O	96.4 Pa	0.137 m³/min	4.9 CFM	2 Wire Leads	1.56 W	Square/Rounded	0.078 lb	35.38 g	20 mm
Delta Electronics BFB0512MA-C	7 V	13.2 VDC	Plastic	30000 Hrs	Plastic	70 mA	4300 RPM	CE CSA UL VDE		10.3 mm	Ball	70 °C	-10 °C	Blower	28 dB	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.383 in H2O	95.4 Pa	0.081 m³/min	2.9 CFM	2 Wire Leads	840 mW

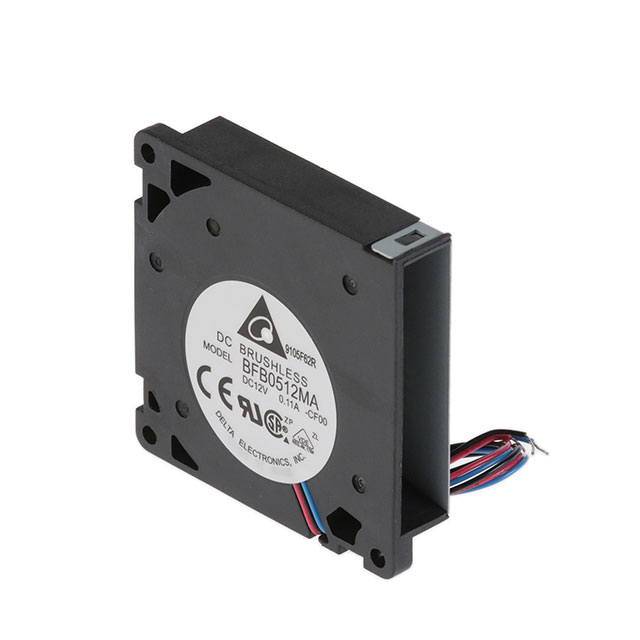

Delta Electronics BFB0512MA-CF00	7 V	13.2 VDC	Plastic	30000 Hrs	Plastic	70 mA	4300 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	10.3 mm	Ball	70 °C	-10 °C	Blower	28 dB	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.383 in H2O	95.4 Pa	0.081 m³/min	2.9 CFM	3 Wire Leads	840 mW

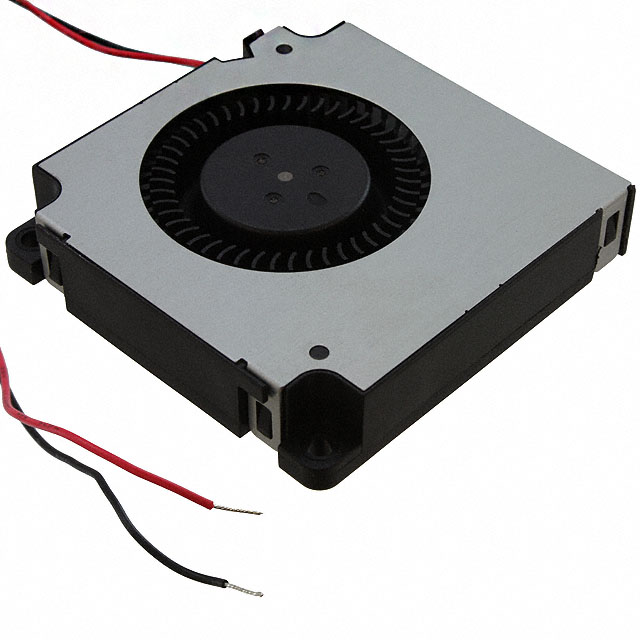

Delta Electronics BFB0512HHA-C	5 VDC	13.2 VDC	Plastic	30000 Hrs	Plastic		5900 RPM	CE CSA UL VDE		10.3 mm	Ball	70 °C	-10 °C	Blower	37.5 dB(A)	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.79 in H2O	196.8 Pa	0.112 m³/min	4 CFM	2 Wire Leads	1.92 W

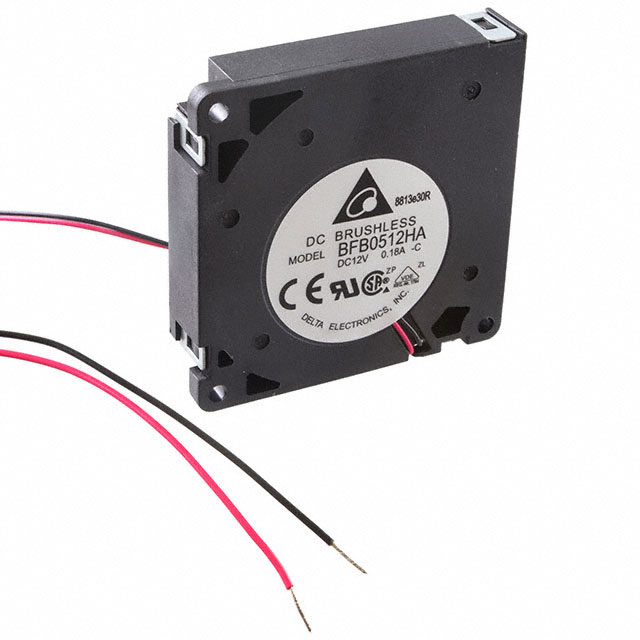

Delta Electronics BFB0512HA-C	5 VDC	13.2 VDC	Plastic	30000 Hrs	Plastic	120 mA	5100 RPM	CE CSA UL VDE		10.3 mm	Ball	70 °C	-10 °C	Blower	32.5 dB	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.563 in H2O	140.2 Pa	0.098 mł/min	3.5 CFM	2 Wire Leads	1.44 W
Delta Electronics BFB0512HHD	5 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	Plastic		4900 RPM	CE CSA UL VDE			Ball	70 °C	-10 °C	Blower	36.5 dB(A)	50 mm	50 mm			12 VDC	0.636 in H2O	158.4 Pa	0.163 m³/min	5.8 CFM	2 Wire Leads	1.92 W	Square/Rounded	0.078 lb	35.38 g	20 mm
Delta Electronics BFB0512VHD-F00	5 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	Plastic	0.23 A	5300 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)		Ball	70 °C	-10 °C	Blower	32 dB	52.1 mm	53.3 mm			12 VDC	0.732 in H2O	182.3 Pa	0.19 m³/min	6.8 CFM	3 Wire Leads	2.76 W	Square/Rounded	0.057 lb	25.85 g	20 mm

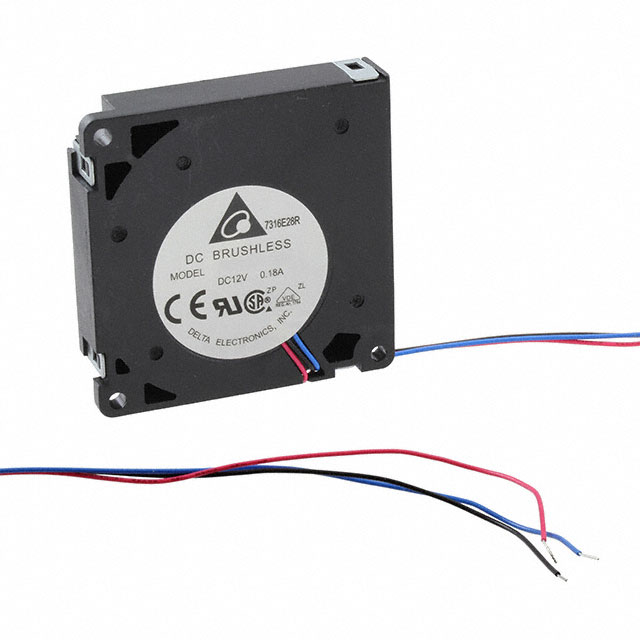

Delta Electronics BFB0512HA-CF00	5 VDC	13.2 VDC	Plastic	30000 Hrs	Plastic	120 mA	5100 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	10.3 mm	Ball	70 °C	-10 °C	Blower	32.5 dB	50 mm	50 mm	22.68 g	0.05 lb	12 VDC	0.563 in H2O	140.2 Pa	0.098 mł/min	3.5 CFM	3 Wire Leads	1.44 W

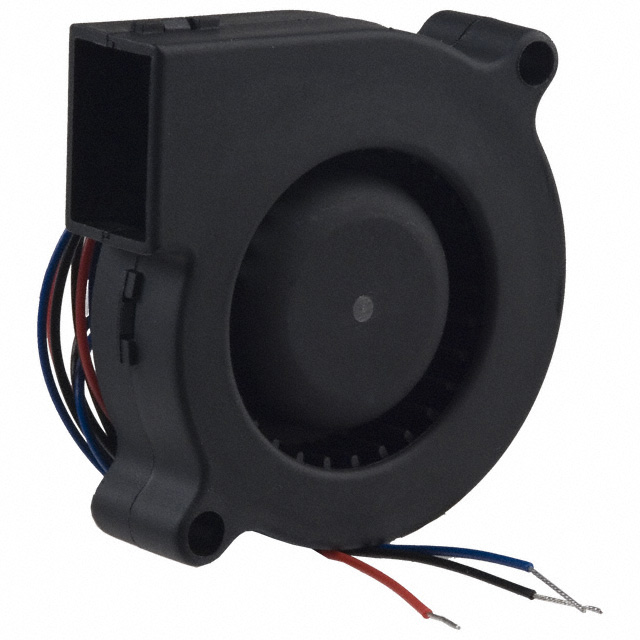

Delta Electronics BFB0512H-R00	10 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	Plastic		5500 RPM	CE CSA UL VDE	Locked Rotor Sensor		Ball	70 °C	-10 °C	Blower	38 dB(A)	51.3 mm	51 mm			12 VDC			0.109 m³/min	3.9 CFM	3 Wire Leads	1.92 W	Square/Rounded	0.062 lb	28.12 g	15 mm
