177-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Contact Finish | Connector Type | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style | Current Rating (Amps) | Mounting Type | Flange Feature | Shell Material, Finish | Number of Rows [custom] | Contact Finish Thickness | Contact Type | Number of Positions | Features | Termination | Material Flammability Rating | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

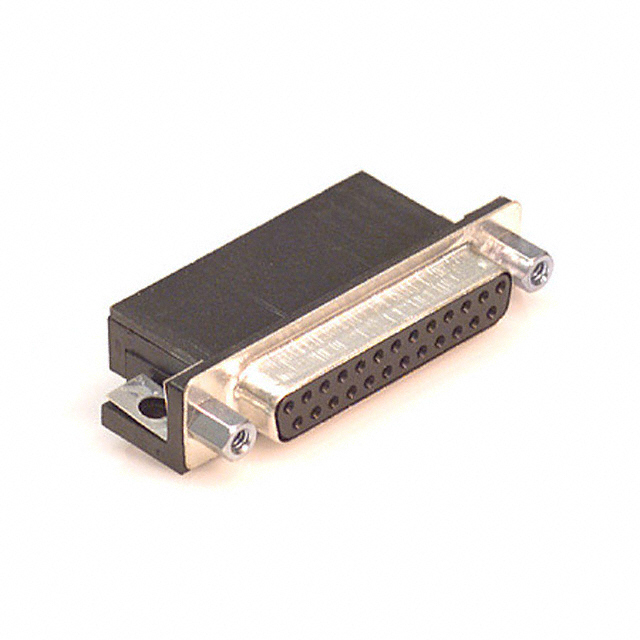

 NorComp Inc. | -55 C | 105 ░C | Phosphor Bronze | Polyester Glass Filled | Black | Gold | Receptacle Female Sockets | 0.59 in | 14.99 mm | B DB | 3 | D-Sub | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Metal Tin Plated | 2 | Flash | Signal | 25 | Board Lock Ground Strap | Solder | UL94 V-0 | |
 NorComp Inc. | -55 C | 105 ░C | Phosphor Bronze | Polyester Glass Filled | Black | Gold | Receptacle Female Sockets | 0.59 in | 14.99 mm | B DB | 3 | D-Sub | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Metal Tin Plated | 2 | Flash | Signal | 25 | Ground Strap | Solder | UL94 V-0 | |

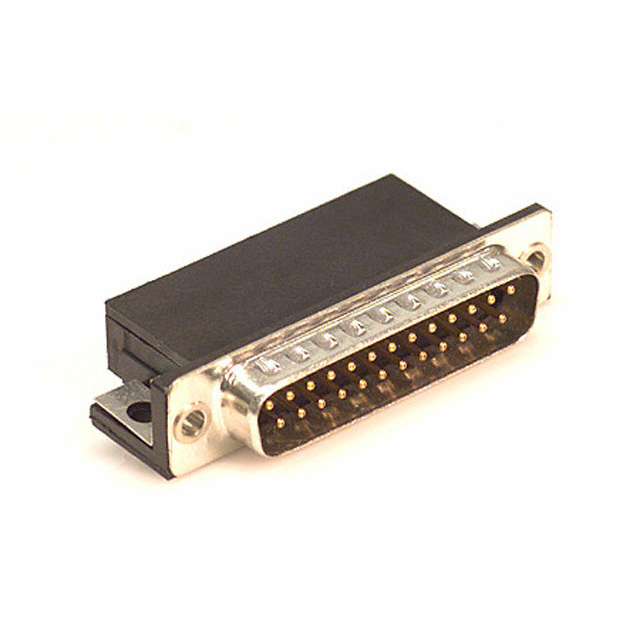

 NorComp Inc. | -55 C | 105 ░C | Phosphor Bronze | Polyester Glass Filled | Black | Gold | Plug Male Pins | 0.59 in | 14.99 mm | B DB | 3 | D-Sub | 5 A | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | Metal Tin Plated | 2 | Flash | Signal | 25 | Ground Strap Grounding Indents | Solder | UL94 V-0 | |
NorComp Inc. | -55 C | 105 ░C | Phosphor Bronze | Polyester Glass Filled | Black | Gold | Receptacle Female Sockets | 0.59 in | 14.99 mm | B DB | 3 | D-Sub | 5 A | Panel Mount Right Angle Through Hole | Housing/Shell | Metal Tin Plated | 2 | Flash | Signal | 25 | Board Lock Ground Strap | Solder | UL94 V-0 | 4-40 |
