DPF10 Series

Catalog

FEMALE DISCONNECT, PREMIUM NYLON FULLY I ROHS COMPLIANT: YES

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Gender	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Color	Features	Insulation	Mounting Type	Terminal Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Tab Width [x]	Tab Width [x]	Contact Finish

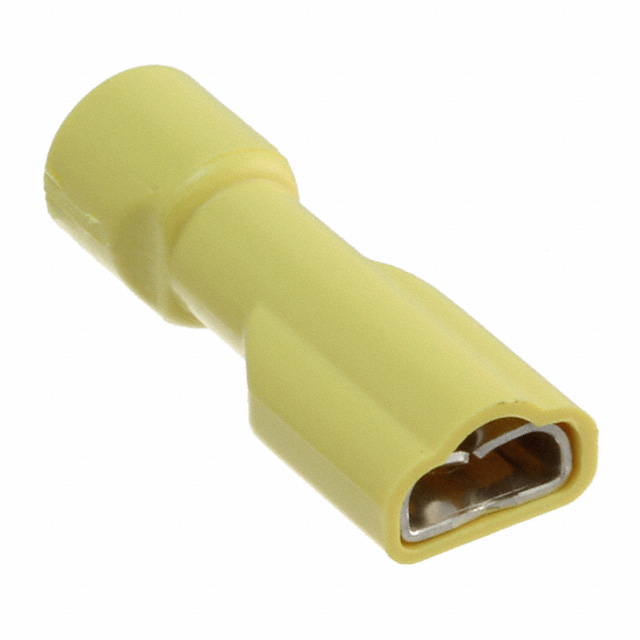

Panduit Corp DPF10-250FIB-D	5.59 mm	3.56 mm	0.22 in	0.14 in	Brass	Female	Crimp	10 AWG	12 AWG	Yellow	Butted Seam	Fully Insulated	Free Hanging (In-Line)	Standard	0.81 mm	0.032 in	0.96 in	24.38 mm	6.35 mm	0.25 in	Tin

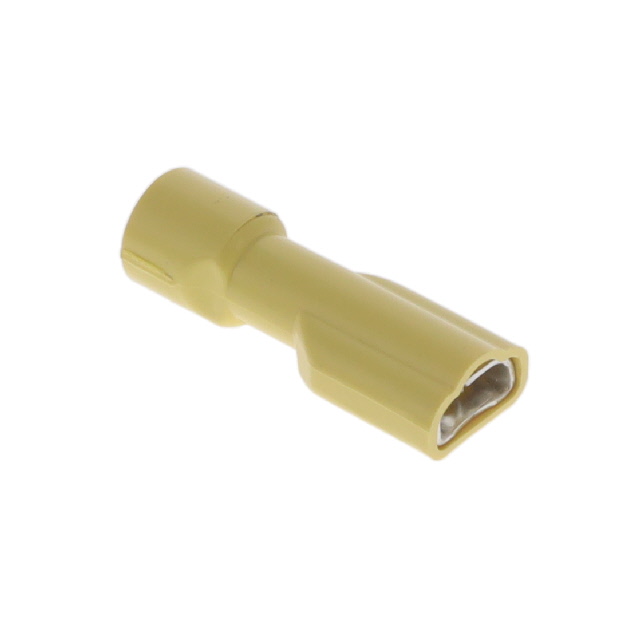

Panduit Corp DPF10-250FIB-L	5.59 mm	3.56 mm	0.22 in	0.14 in	Brass	Female	Crimp	10 AWG	12 AWG	Yellow		Fully Insulated	Free Hanging (In-Line)	Standard	0.81 mm	0.032 in	0.96 in	24.38 mm	6.35 mm	0.25 in	Tin
