TPSM82902 Series

3-V to 17-V, 2-A high efficiency, low IQ synchronous buck converter module with integrated inductor

Catalog

3-V to 17-V, 2-A high efficiency, low IQ synchronous buck converter module with integrated inductor

Part	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Mounting Type	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [y]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Applications	Voltage - Input (Min) [Min]	Features	Supplier Device Package

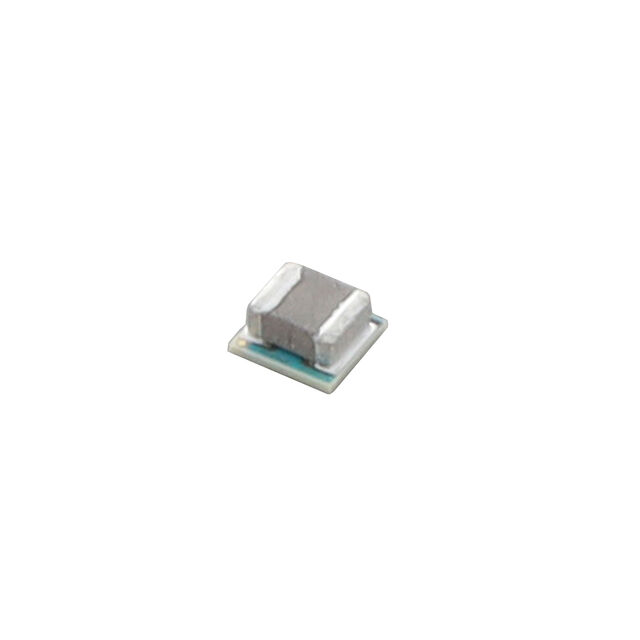

Texas Instruments TPSM82902SISR	2 A	10-LDFN Exposed Pad	17 V	125 °C	-40 °C	Active Low Enable	Surface Mount	1	Non-Isolated PoL Module	0.12 in	0.06 "	1.5 mm 2.8 mm 3 mm	0.11 in	5.5 V	0.4 V	ITE (Commercial)	3 V	Adjustable Output Remote On/Off	10-uSIP (3x2.8)

Catalog

3-V to 17-V, 2-A high efficiency, low IQ synchronous buck converter module with integrated inductor

Key Features

• High efficiency for wide duty cycle and load rangeIQ: 4-µA typical62-mΩ high-side and 22-mΩ low-side RDS(ON)3-mm × 2.8-mm × 1.6-mm MicroSiP™ packageUp to 2-A continuous output current±0.9% feedback voltage accuracy across temp (–40°C to 125°C)Configurable output voltage options:VFBexternal divider: 0.6 V to 5.5 VVSETinternal divider: 16 options between 0.4 V and 5.5 VDCS-Control topology with 100% modeFlexibility through MODE/S-CONF pin2.5-MHz or 1.0-MHz switching frequencyForced PWM or auto (PFM) power save mode with dynamic mode change optionAutomatic efficiency enhancement (AEE)Output discharge on/offHighly flexible and easy to useOptimized pinout for single-layer routingPrecise enable inputPower-good outputAdjustable soft start and trackingNo external bootstrap capacitor requiredCreate a custom design using the TPSM82902 using theWEBENCH Power DesignerHigh efficiency for wide duty cycle and load rangeIQ: 4-µA typical62-mΩ high-side and 22-mΩ low-side RDS(ON)3-mm × 2.8-mm × 1.6-mm MicroSiP™ packageUp to 2-A continuous output current±0.9% feedback voltage accuracy across temp (–40°C to 125°C)Configurable output voltage options:VFBexternal divider: 0.6 V to 5.5 VVSETinternal divider: 16 options between 0.4 V and 5.5 VDCS-Control topology with 100% modeFlexibility through MODE/S-CONF pin2.5-MHz or 1.0-MHz switching frequencyForced PWM or auto (PFM) power save mode with dynamic mode change optionAutomatic efficiency enhancement (AEE)Output discharge on/offHighly flexible and easy to useOptimized pinout for single-layer routingPrecise enable inputPower-good outputAdjustable soft start and trackingNo external bootstrap capacitor requiredCreate a custom design using the TPSM82902 using theWEBENCH Power Designer

Description

The TPSM82902 is a highly efficient, small, and flexible synchronous step-down DC-DC converter MicroSiP package module that is easy to use. A selectable switching frequency of 2.5 MHz or 1.0 MHz allows the use of small components and provides fast transient response. The device supports high VOUTaccuracy of ± 1% with the DCS-Control topology. The wide input voltage range of 3 V to 17 V supports a variety of nominal inputs, like 12-V supply rails, single-cell or multi-cell Li-Ion, and 5-V or 3.3-V rails. The TPSM82902 can automatically enter power save mode (if auto PFM/PWM is selected) at light loads to maintain high efficiency. Additionally, to provide high efficiency at very small loads, the device has a low typical quiescent current of 4 µA. AEE, if enabled, provides high efficiency across VIN, VOUT, and load current. The device includes a MODE/Smart-CONF input to set the internal/external divider, switching frequency, output voltage discharge, and automatic power save mode or forced PWM operation. The device is available in small 11-pin MicroSiP package measuring 3.0 mm × 2.8 mm × 1.6 mm with an integrated 1-µH inductor. The TPSM82902 is a highly efficient, small, and flexible synchronous step-down DC-DC converter MicroSiP package module that is easy to use. A selectable switching frequency of 2.5 MHz or 1.0 MHz allows the use of small components and provides fast transient response. The device supports high VOUTaccuracy of ± 1% with the DCS-Control topology. The wide input voltage range of 3 V to 17 V supports a variety of nominal inputs, like 12-V supply rails, single-cell or multi-cell Li-Ion, and 5-V or 3.3-V rails. The TPSM82902 can automatically enter power save mode (if auto PFM/PWM is selected) at light loads to maintain high efficiency. Additionally, to provide high efficiency at very small loads, the device has a low typical quiescent current of 4 µA. AEE, if enabled, provides high efficiency across VIN, VOUT, and load current. The device includes a MODE/Smart-CONF input to set the internal/external divider, switching frequency, output voltage discharge, and automatic power save mode or forced PWM operation. The device is available in small 11-pin MicroSiP package measuring 3.0 mm × 2.8 mm × 1.6 mm with an integrated 1-µH inductor.
