G7L-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 30A 48V

Part	Coil Type	Operate Time	Relay Type	Coil Voltage	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Contact Material	Contact Rating (Current)	Release Time	Coil Current	Mounting Type	Switching Voltage	Contact Form	Approval Agency	Load - Max Switching [Max]	Must Release Voltage	Termination Style	Coil Insulation	Features	Load - Max Switching
Omron Electronics Inc-EMC Div G7L-1A-BUB DC48	Non Latching	30 ms	General Purpose	48 VDC	1.22 kOhms	-25 °C	60 °C	36 VDC	Silver Alloy	30 A	30 ms	40 mA	Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	7.2 VDC	Screw Terminal
Omron Electronics Inc-EMC Div G7L-1A-T-80-CB AC100/120	Non Latching	30 ms	General Purpose	120 VAC	5.26 kOhms	-25 °C	60 °C	75 VAC	Silver Alloy	30 A	30 ms		Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	18 VAC	Quick Connect - 0.250" (6.3mm)	Class B
Omron Electronics Inc-EMC Div G7L-1A-T-J-CB-AC100/120	Non Latching	30 ms	General Purpose	120 VAC	5.26 kOhms	-25 °C	60 °C	75 VAC	Silver Alloy	30 A	30 ms		Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	18 VAC	Quick Connect - 0.250" (6.3mm)	Class B	Test Button

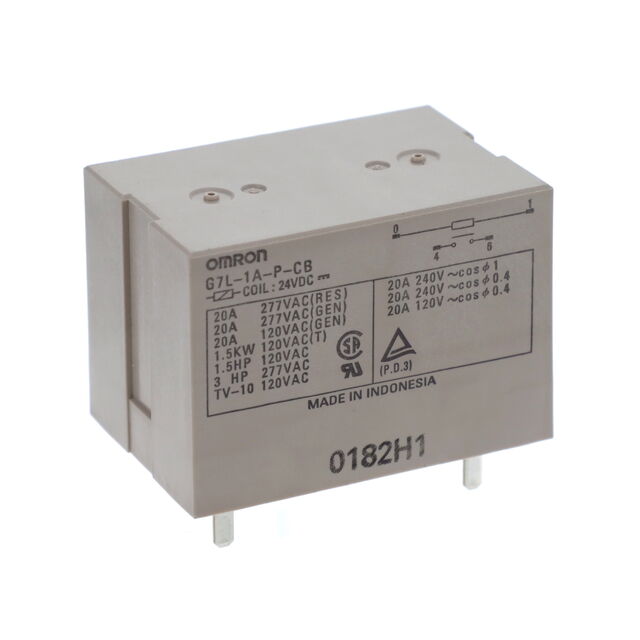

Omron Electronics Inc-EMC Div G7L-1A-P-CB-DC24	Non Latching	30 ms	General Purpose	24 VDC	303 Ohms	-25 °C	60 °C	18 VDC	Silver Alloy	20 A	30 ms		Through Hole	250 VAC	SPST-NO (1 Form A)	CSA TUV UR		3.6 VDC	PC Pin	Class B		5000 VA
Omron Electronics Inc-EMC Div G7L-1A-T-CB DC48	Non Latching	30 ms	General Purpose	48 VDC	1.22 kOhms	-25 °C	60 °C	36 VDC	Silver Alloy	30 A	30 ms	40 mA	Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	7.2 VDC	Quick Connect - 0.250" (6.3mm)	Class B

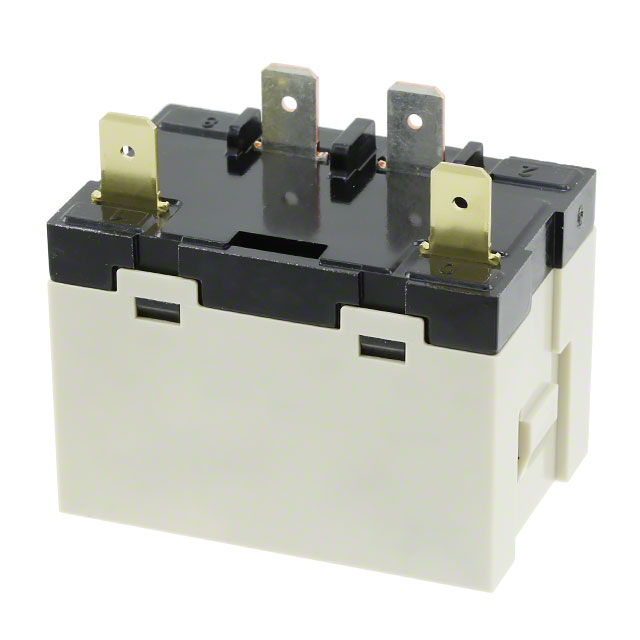

Omron Electronics Inc-EMC Div G7L-1A-T-J-CB DC24	Non Latching	30 ms	General Purpose	24 VDC	303 Ohms	-25 °C	60 °C	18 VDC	Silver Alloy	30 A	30 ms		Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	3.6 VDC	Quick Connect - 0.250" (6.3mm)	Class B	Test Button

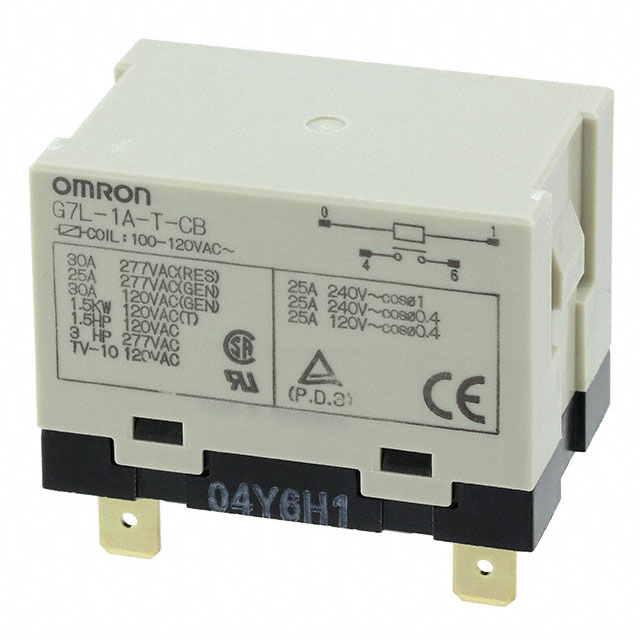

Omron Electronics Inc-EMC Div G7L-1A-T-CB AC100/120	Non Latching	30 ms	General Purpose	120 VAC	5.26 kOhms	-25 °C	60 °C	75 VAC	Silver Alloy	30 A	30 ms		Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	18 VAC	Quick Connect - 0.250" (6.3mm)	Class B
Omron Electronics Inc-EMC Div G7L-1A-B-CB DC24	Non Latching	30 ms	General Purpose	24 VDC	303 Ohms	-25 °C	60 °C	18 VDC	Silver Alloy	30 A	30 ms		Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	3.6 VDC	Screw Terminal	Class B
Omron Electronics Inc-EMC Div G7L-1A-T-80-CB AC200/240	Non Latching	30 ms	General Purpose	240 VAC	21 kOhms	-25 °C	60 °C	150 VAC	Silver Alloy	30 A	30 ms	10.2 mA	Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	36 VAC	Quick Connect - 0.250" (6.3mm)	Class B
Omron Electronics Inc-EMC Div G7L-1A-B DC48	Non Latching	30 ms	General Purpose	48 VDC	1.22 kOhms	-25 °C	60 °C	36 VDC	Silver Alloy	30 A	30 ms	40 mA	Chassis Mount	250 VAC	SPST-NO (1 Form A)	CSA TUV UR	7500 VA	7.2 VDC	Screw Terminal
