3141-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

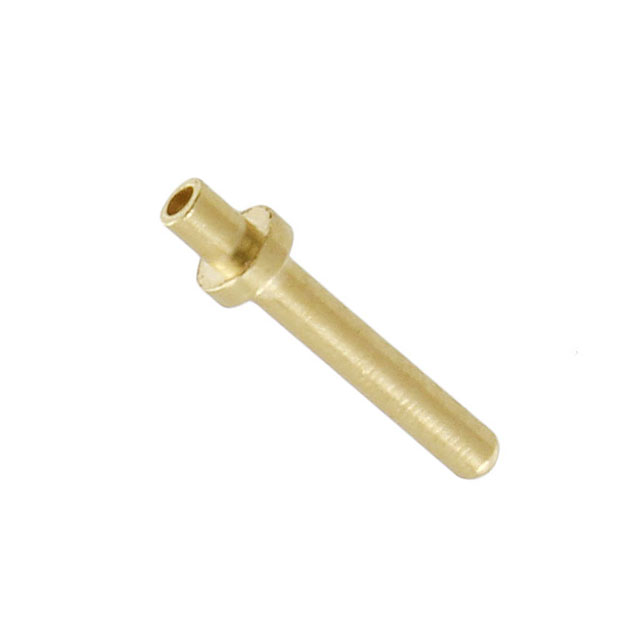

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Board Thickness | Board Thickness | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Insulation | Contact Finish | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Swage | 0.25 Ám | 10 Áin | Brass Alloy | 0.79 mm | 0.031 in | Through Hole | 5.84 mm | 0.23 in | PC Pin | 0.051 " | 1.3 mm | 0.301 in | 7.65 mm | Non-Insulated | Gold | Single End |
 Mill-Max Manufacturing Corp. | 1.78 mm | 0.07 in | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Swage | 5.08 Ám | 200 Áin | Brass Alloy | 0.79 mm | 0.031 in | Through Hole | 5.84 mm | 0.23 in | PC Pin | 0.051 " | 1.3 mm | 0.301 in | 7.65 mm | Non-Insulated | Tin | Single End |
 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 0.04 in | 1.02 mm | 0.043 in | 1.09 mm | Swage | 5.08 Ám | 200 Áin | Brass Alloy | 0.79 mm | 0.031 in | Through Hole | 5.84 mm | 0.23 in | PC Pin | 0.051 " | 1.3 mm | 0.301 in | 7.65 mm | Non-Insulated | Tin-Lead | Single End |
