MAX98300 Series

Catalog

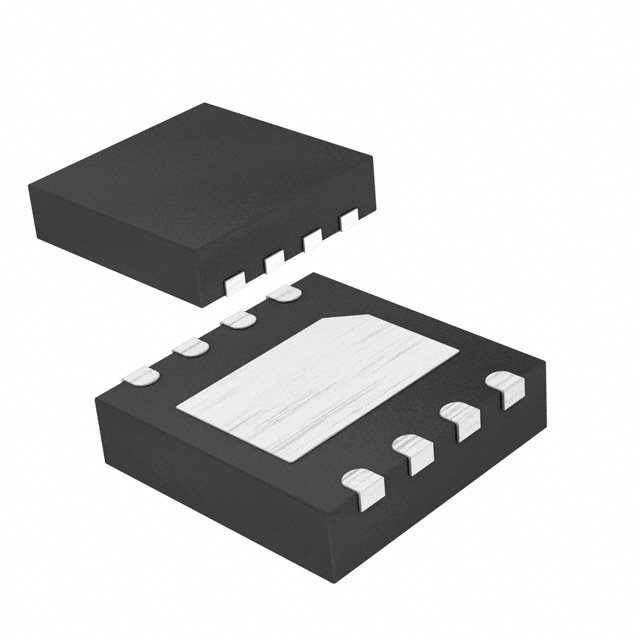

IC AMP CLASS D MONO 2.6W 8TDFN

Part	Type	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Output Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Utilized IC / Part	Supplied Contents	Board Type
Analog Devices Inc./Maxim Integrated MAX98300SETA+T	Class D	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	5.5 V	2.6 V	Surface Mount	1-Channel (Mono)	1	2.6 W	8-TDFN-EP (2x2)	85 °C	-40 °C	8-WFDFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX98300ETA+T	Class D	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	5.5 V	2.6 V	Surface Mount	1-Channel (Mono)	1	2.6 W	8-TDFN-EP (2x2)	85 °C	-40 °C	8-WFDFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX98300ETA+	Class D	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	5.5 V	2.6 V	Surface Mount	1-Channel (Mono)	1	2.6 W	8-TDFN-EP (2x2)	85 °C	-40 °C	8-WFDFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX98300EVKIT+WLP			5.5 V	2.6 V		1-Channel (Mono)	1	2.6 W					MAX98300	Board(s)	Fully Populated
Analog Devices Inc./Maxim Integrated MAX98300EWL+T	Class D	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	5.5 V	2.6 V	Surface Mount	1-Channel (Mono)	1	2.6 W	9-WLP (1.26x1.26)	85 °C	-40 °C	9-WFBGA WLBGA
