KPJX Series

DC Power Connectors 3P JACK SKT SHIELDED SNAP AND LOCK

Manufacturer: Kycon, Inc.

Catalog

DC Power Connectors 3P JACK SKT SHIELDED SNAP AND LOCK

Catalog

DC Power Connectors 3P JACK SKT SHIELDED SNAP AND LOCK

Part	Applications	Insert Material	Contact Material	Mounting Type	Termination	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Shell Size - Insert	Orientation	Shielding	Fastening Type	Color	Features	Voltage Rating	Mounting Feature	Shell Material	Cable Opening	Cable Opening	Insert Material [custom]	Insert Material [custom]	Backshell Material, Plating

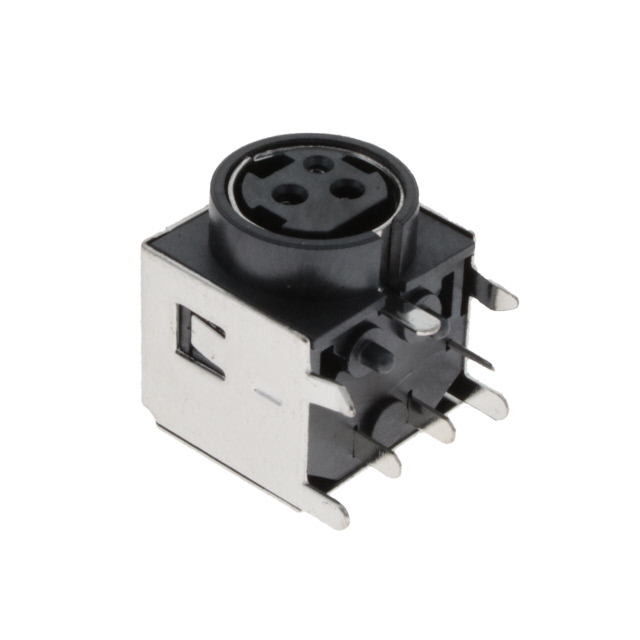

Kycon, Inc. KPJXHT-3S-S	Digital Power	Thermoplastic	Brass Phosphor Bronze	Right Angle Through Hole	Solder	3	1 A 7.5 A	UL94 V-0	85 °C	-40 C	Jack Female Sockets	Plastic	Power DIN	Keyed	Shielded	Snap-In	Black Silver	Board Guide Board Lock	48 VDC

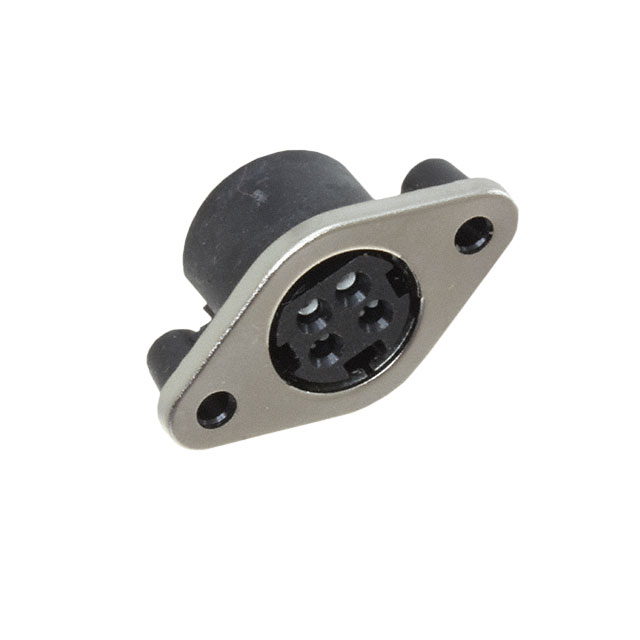

Kycon, Inc. KPJX-PM-4S-S	Digital Power	Polybutylene Terephthalate (PBT)	Brass	Panel Mount Through Hole	Solder	4	7.5 A	UL94 V-0	75 ░C	-40 C	Jack Female Sockets	Plastic	Power DIN	Keyed	Shielded	Snap-In	Black Silver	Ground	48 VDC	Flange	Polybutylene Terephthalate (PBT)
Kycon, Inc. KPJX-3S-S				Right Angle Through Hole	Solder	3	1 A 7.5 A	UL94 V-0	75 ░C	-40 C	Jack Female Sockets	Plastic	Power DIN	Keyed	Shielded	Snap-In	Black	Board Guide Board Lock	48 VDC		Polybutylene Terephthalate (PBT)

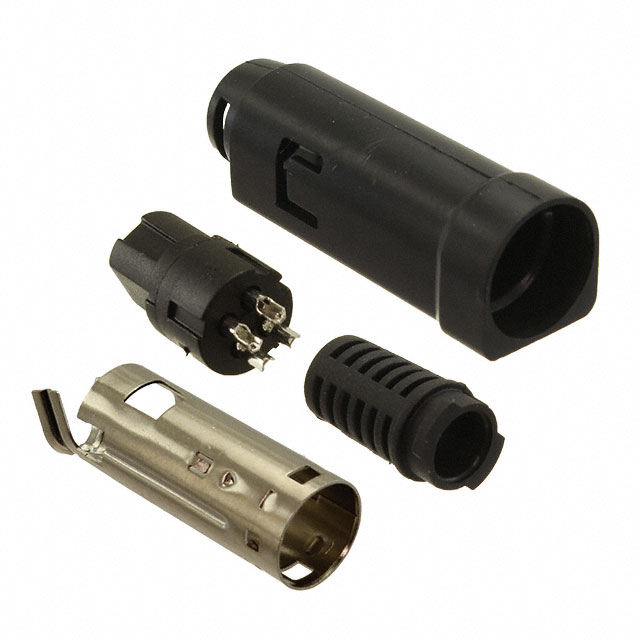

Kycon, Inc. KPJX-CM-4S	Digital Power		Brass	Free Hanging (In-Line)		4	7.5 A	UL94 HB UL94 V-2	85 °C	-40 C	Receptacle Female Sockets	Plastic	Power DIN	Keyed	Unshielded	Snap-In	Black	Backshell Strain Relief	48 VDC		Polyacrylonitrile Butadiene Styrene (ABS)	6.3 mm	0.248 in	Nylon	Polyamide (PA)	Polyacrylonitrile Butadiene Styrene (ABS)
