EM3780 Series

Catalog

TEST LEADS MINIGRABBER PATCH CORD (RED) MTO

Part	Temperature Range	Temperature Range	Cable Length	Cable Length	1st Connector	Configuration	Contents	Wire Gauge	Voltage - Rated	2nd Connector	Material - Insulation	Current Rating (Amps)

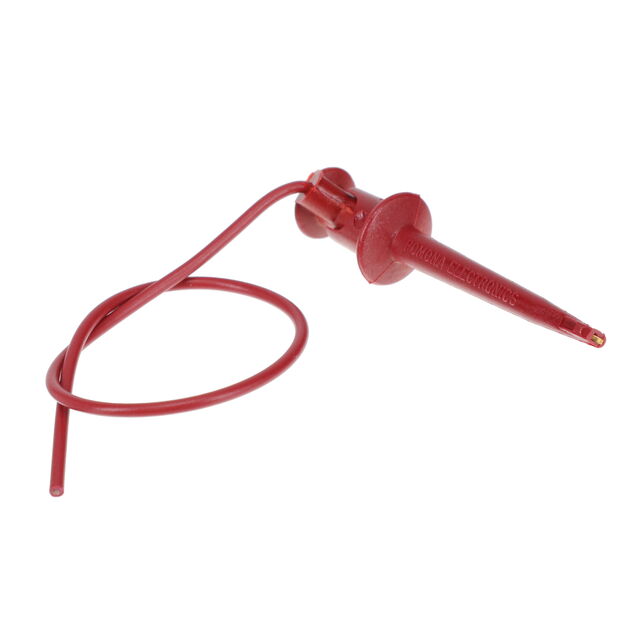

Pomona Electronics EM3780-8-2	102 °C	216 °F	8 in	203.2 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Red	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A

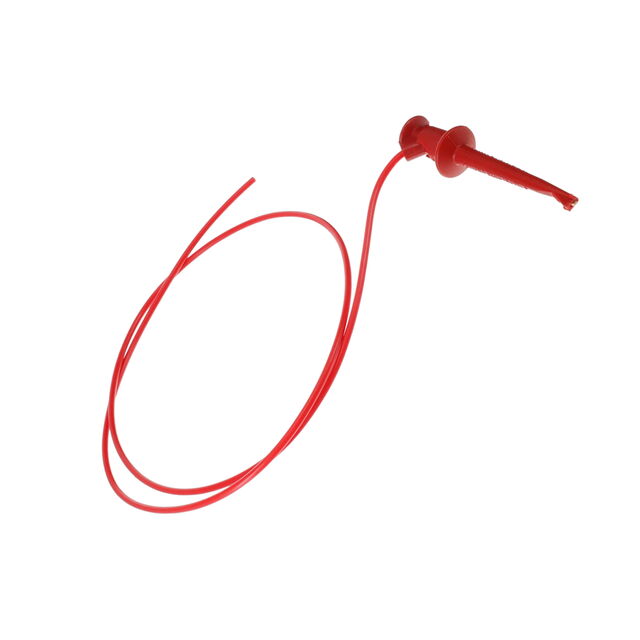

Pomona Electronics EM3780-24-2#	102 °C	216 °F	24 in	609.6 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Red	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A

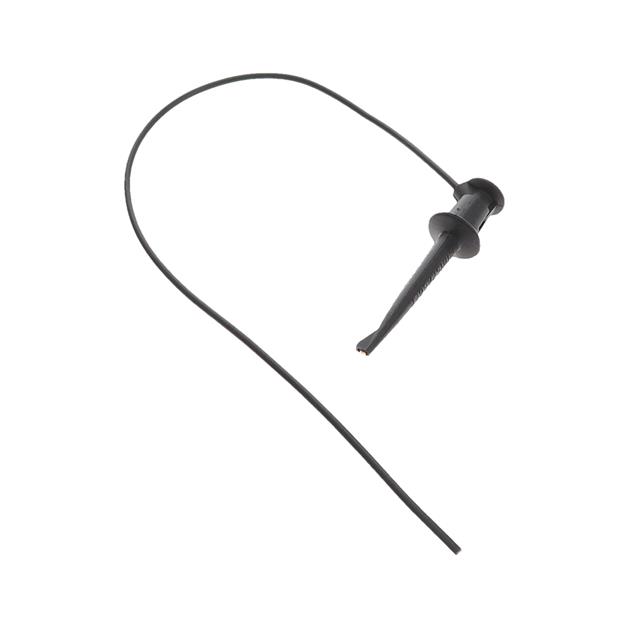

Pomona Electronics EM3780-12-0#	102 °C	216 °F	12 in	304.8 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Black	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A
Pomona Electronics EM3780-12-2#	102 °C	216 °F	12 in	304.8 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Red	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A

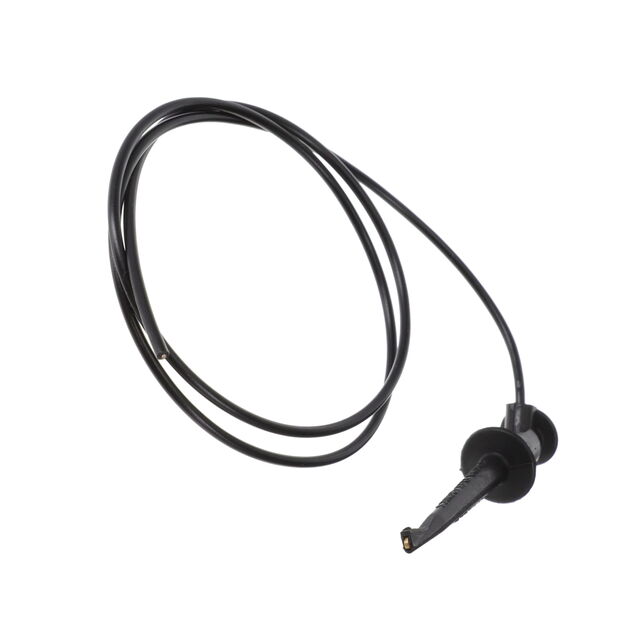

Pomona Electronics EM3780-24-0#	102 °C	216 °F	24 in	609.6 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Black	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A

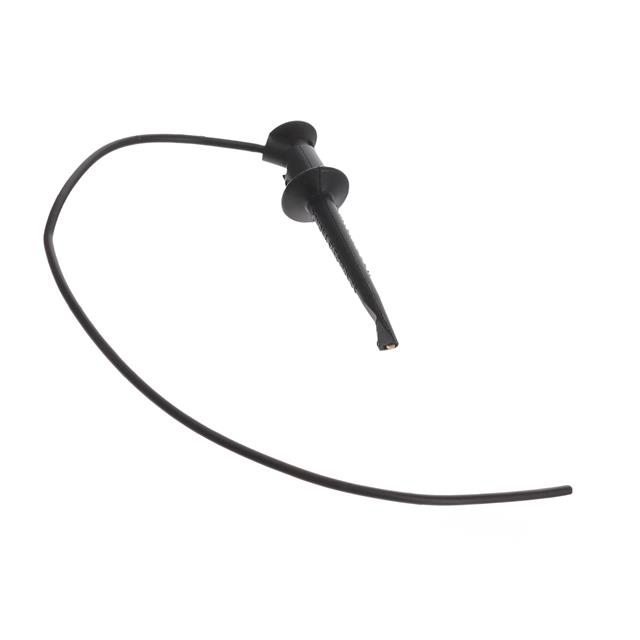

Pomona Electronics EM3780-8-0	102 °C	216 °F	8 in	203.2 mm	Mini Hook	Grabber Hook to Wire Leads	1 Lead Black	20 AWG	30 VAC 60 VDC	Wire Leads	Poly-Vinyl Chloride (PVC)	5 A
