9411 Series
Manufacturer: Belden Inc.
Beta
⌘K

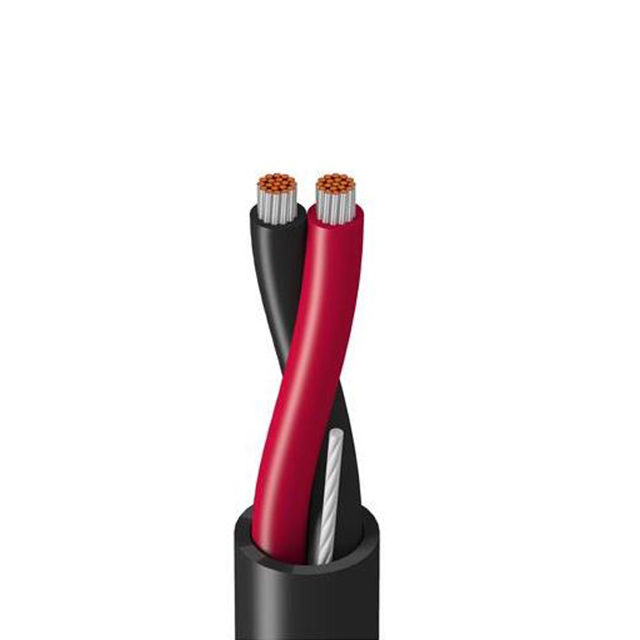

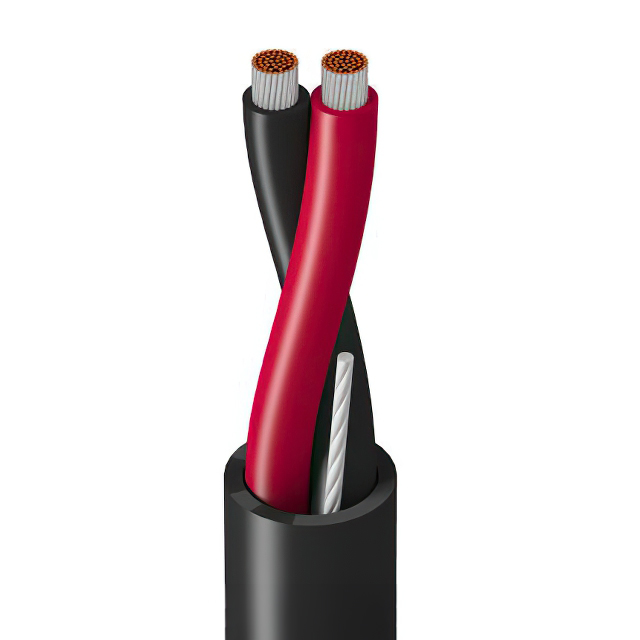

CABLE 2COND 14AWG CHROME
| Part | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Conductor Material | Features | Usage | Wire Gauge | Jacket Color | Ratings | Voltage | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 2 | 42 | 30 AWG | Multi-Conductor | Copper Tinned | Rip Cord | Instrumentation | 14.5 AWG | Chrome | UL Style 2464 | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | 8.18 mm | 0.322 in | 0.042 in | 1.067 mm | 152.4 m | 500 ft |
 Belden Inc. | 2 | 42 | 30 AWG | Multi-Conductor | Copper Tinned | Rip Cord | Instrumentation | 14.5 AWG | Chrome | UL Style 2464 | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | 8.18 mm | 0.322 in | 0.042 in | 1.067 mm | 762 m | 2500 ft |
