SME312 Series

Catalog

MINI-BEAM EXPERT: VISIBLE WHITE GLASS FIBER OPTIC

Part	Ingress Protection	Adjustment Type	Connection Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Output Configuration	Sensing Distance	Sensing Distance

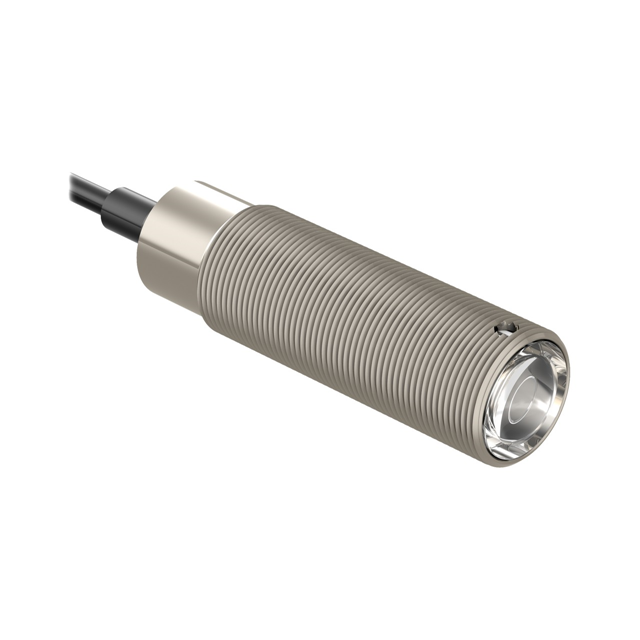

BANNER ENGINEERING SME312FVW	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Cable	500 µs	10 VDC	30 VDC	Fiber Optic	78.74 "	2 m	-20 ░C	70 °C	LED	NPN/PNP - Dark-ON/Light-ON - Selectable
BANNER ENGINEERING SME312FPWQD	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Connector	500 µs	10 VDC	30 VDC				-20 ░C	70 °C	LED	NPN/PNP - Dark-ON/Light-ON - Selectable

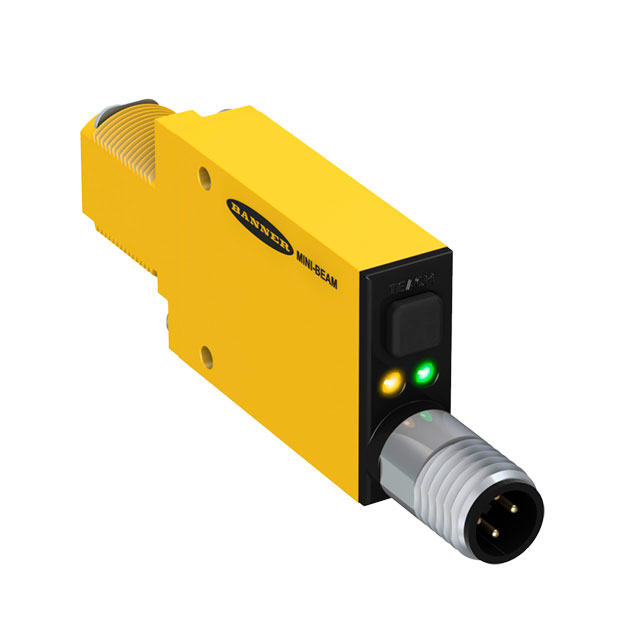

BANNER ENGINEERING SME312FQD	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Cable	500 µs	10 VDC	30 VDC	Fiber Optic	78.74 "	2 m	-20 ░C	70 °C	Infrared LED	NPN PNP
BANNER ENGINEERING SME312FQDP	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Connector	500 µs	10 VDC	30 VDC				-20 ░C	70 °C	LED	NPN/PNP - Dark-ON/Light-ON - Selectable
BANNER ENGINEERING SME312LPCQDP	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Connector	500 µs	10 VDC	30 VDC	Polarized Retroreflective			-20 ░C	70 °C	RED (650nm)	NPN/PNP - Dark-ON/Light-ON - Selectable	39.37 in	1 m

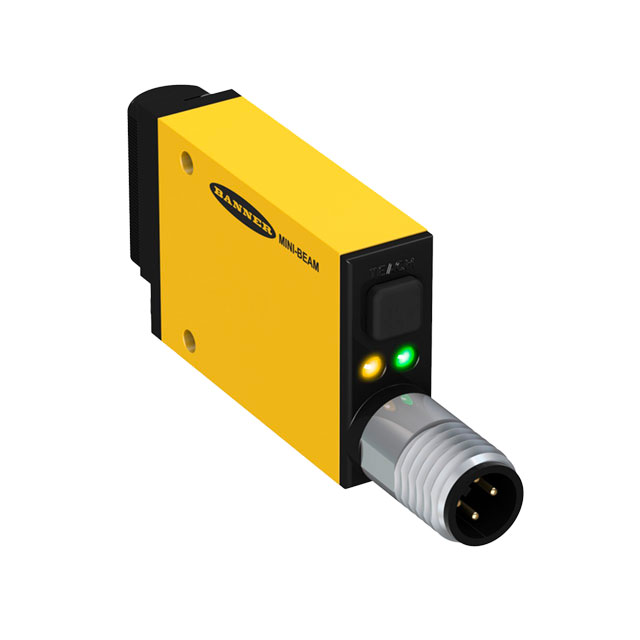

BANNER ENGINEERING SME312FPQD	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Cable	500 µs	10 VDC	30 VDC	Fiber Optic	78.74 "	2 m	-20 ░C	70 °C	RED (650nm)	NPN PNP

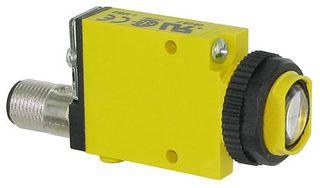

BANNER ENGINEERING SME312LPCQD	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Cable	500 µs	10 VDC	30 VDC	Polarized Retroreflective	78.74 "	2 m	-20 ░C	70 °C	Red LED	NPN PNP	39.37 in	1 m

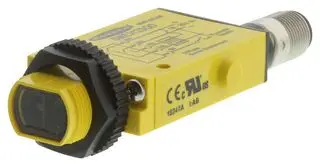

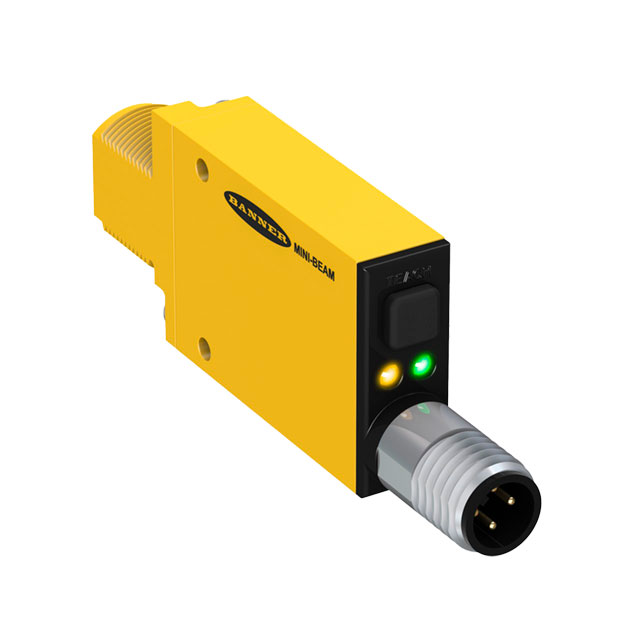

BANNER ENGINEERING SME312DQD	12 13 2 3 3S 4 4X 6 IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6	Adjustable	Cable	500 µs	10 VDC	30 VDC	Diffuse	78.74 "	2 m	-20 ░C	70 °C	Infrared (880nm)	NPN PNP	14.961 in	380 mm
