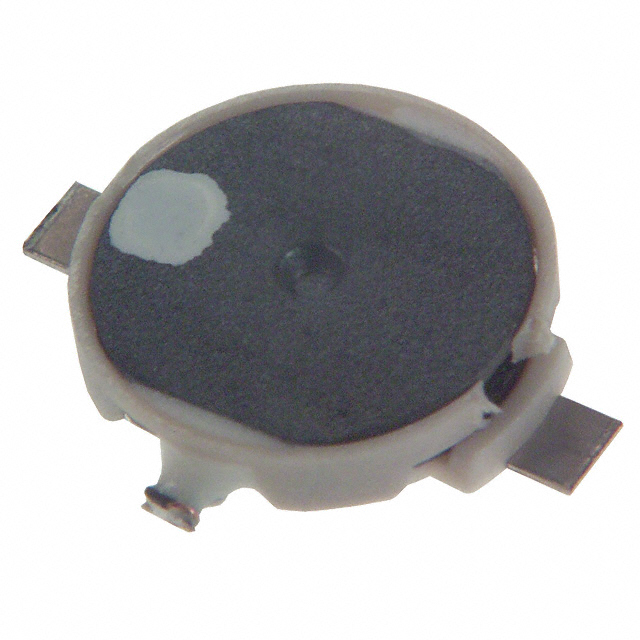

ELT-5KT Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 68UH 260MA 2.6 OHM SMD

Part	Mounting Type	Package / Case	Inductance Frequency - Test	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	DC Resistance (DCR)	Type	Tolerance	Shielding
Panasonic Industrial Automation Sales ELT-5KT680LB	Surface Mount	Nonstandard	100 kHz	68 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	0.26 A	2.6 Ohm	Wirewound	15 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT4R7MA	Surface Mount	Nonstandard	100 kHz	4.7 ÁH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	950 mA	200 mOhm		20 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT101LB	Surface Mount	Nonstandard	100 kHz	100 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in		4.3 Ohm	Wirewound	15 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT100MA	Surface Mount	Nonstandard	100 kHz	10 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	0.68 A	360 mOhm	Wirewound	20 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT3R3MA	Surface Mount	Nonstandard	100 kHz	3.3 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	1 A	170 mOhm		20 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT330LB	Surface Mount	Nonstandard	100 kHz	33 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	360 mA	1.2 Ohm	Wirewound	15 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT6R8MA	Surface Mount	Nonstandard	100 kHz	6.8 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	760 mA	300 mOhm	Wirewound	20 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT4R7MB	Surface Mount	Nonstandard	100 kHz	4.7 ÁH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	950 mA	200 mOhm	Wirewound	20 %	Unshielded
Panasonic Industrial Automation Sales ELT-5KT100MC	Surface Mount	Nonstandard	100 kHz	10 µH	5.8 mm	0.228 in	5.2 mm	0.205 "	1.2 mm	0.047 in	0.68 A	360 mOhm	Wirewound	20 %	Unshielded
