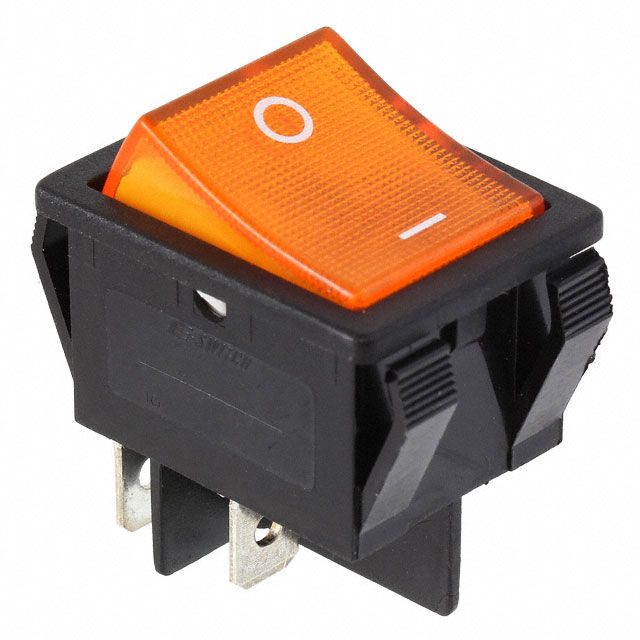

R5BBLKYE Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPST 20A 125V
| Part | Mechanical Life | Electrical Life | Approval Agency | Color - Actuator/Cap | Illumination Voltage (Nominal) | Illumination Type, Color | Actuator Marking | Termination Style | Mounting Type | Switch Function | Circuit | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 10000 Cycles | CSA UL | Yellow | 12 VDC | LED Yellow | No Marking | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | DPST | 20 A | 125 V | 30 mm | 22.2 mm | 55 °C | -20 ░C | Concave (Curved) - Illuminated |
E-Switch | 30000 Steps | 10000 Cycles | CSA UL | Yellow | 250 VAC | Neon Yellow | O - | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | DPST | 20 A | 125 V | 30 mm | 22.2 mm | 55 °C | -20 ░C | Concave (Curved) - Illuminated |
 E-Switch | 30000 Steps | 10000 Cycles | CSA UL | Yellow | 250 VAC | Neon Yellow | O I | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | DPST | 20 A | 125 V | 30 mm | 22.2 mm | 55 °C | -20 ░C | Concave (Curved) - Illuminated |
E-Switch | 30000 Steps | 10000 Cycles | CSA UL | Yellow | 125 VAC | Neon Yellow | No Marking | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | On-Off | DPST | 20 A | 125 V | 30 mm | 22.2 mm | 55 °C | -20 ░C | Concave (Curved) - Illuminated |
