LDD Comm C0G Series

Manufacturer: KEMET

Catalog

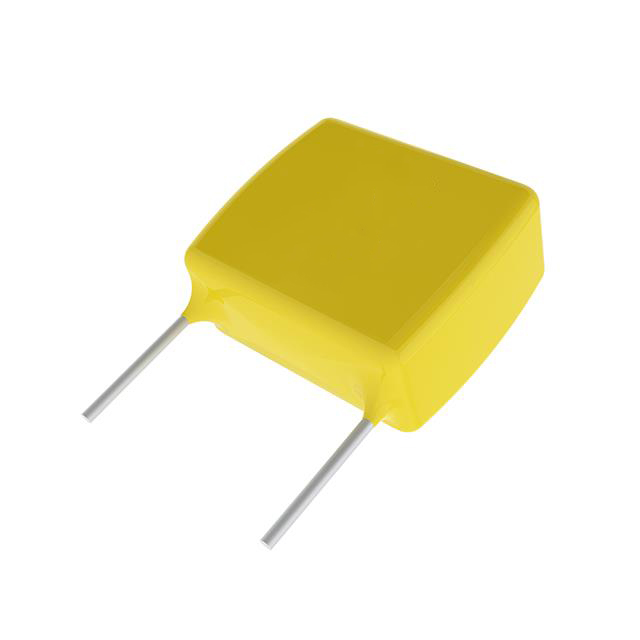

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 200V 39PF C0G 10% LS=5.08MM

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Lead Style	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Applications	Lead Spacing	Lead Spacing	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]
KEMET C052C390K2G5CA	6.22 mm	0.245 "	39 pF	Formed Leads	Through Hole	10 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	4.83 mm	0.09 "	0.19 "	200 VDC	Radial
KEMET C052C391K1G5CA	6.22 mm	0.245 "	390 pF	Formed Leads	Through Hole	10 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	4.83 mm	0.09 "	0.19 "	100 V	Radial
KEMET C062C103J1G5CA7303	7.62 mm	0.3 in	10000 pF	Straight	Through Hole	5 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	7.37 mm	0.09 "	0.29 "	100 V	Radial
KEMET C192C102F2G5CA			0.001 µF	Straight	Through Hole	1 %	-55 C	125 °C	C0G NP0	General Purpose			Low ESL				0.39 "	200 VDC	Axial	0.14 in
KEMET C124C471K2G5CA
KEMET C052C829D1G5CA	6.22 mm	0.245 "	8.2 pF	Formed Leads	Through Hole	0.5 pF	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	4.83 mm	0.09 "	0.19 "	100 V	Radial
KEMET C052C272J1G5CA	6.22 mm	0.245 "	2700 pF	Formed Leads	Through Hole	5 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	4.83 mm	0.09 "	0.19 "	100 V	Radial
KEMET C114C121J2G5CA			120 pF	Straight	Through Hole	5 %	-55 C	125 °C	C0G NP0	General Purpose			Low ESL					200 VDC	Axial	0.09 in	0.16 "	2.29 mm	4.06 mm
KEMET C062C103J5G5TA	7.62 mm	0.3 in	10000 pF	Straight	Through Hole	5 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	7.37 mm	0.09 "	0.29 "	50 VDC	Radial
KEMET C052C101K1G5CA	6.22 mm	0.245 "	100 pF	Formed Leads	Through Hole	10 %	-55 C	125 °C	C0G NP0	General Purpose	0.2 in	5.08 mm	Low ESL	2.29 mm	4.83 mm	0.09 "	0.19 "	100 V	Radial
